9.9DMH (1992)
Fuel

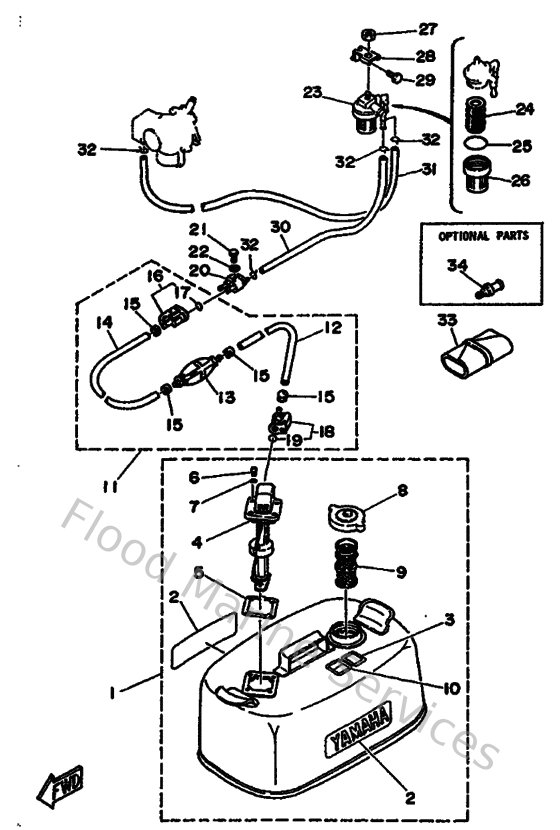

Diagram: Fuel
Parts List
Reference
Description
Price
4
6Y1242600200
Fuel meter assembly
Loading…
↗
5
6Y1242680000
Gasket, fuel meter
Loading…
↗
6
985860501600
Screw, pan head
Loading…
↗
7
6Y1243290000
Seal
Loading…
↗
8
6Y1246100000
Cap assembly
Loading…
↗
9
6Y1241670000
Strainer
Loading…
↗
10
6Y1242558000
Graphic, Fuel Tank 8
Loading…
↗
11
6Y1243060500
Fuel pipe comp. 1
Loading…
↗
12
9044511M0600
Hose (l3000)
Loading…
↗
13
6YL243606300
Primer pump assembly
Loading…
↗
14
9044511M0500
Hose (l1000)
Loading…
↗
15
650243510100
Band 1
Loading…
↗
16
6G1243050500
Fuel pipe joint comp. 2
Loading…
↗
17
932100828700
O-ring (655)
Loading…
↗
18
6Y1243050100
Fuel pipe joint comp. 2
Loading…
↗
20
6G1243041000
Fuel pipe joint comp. 1
Loading…
↗
21
973950602000
Bolt(7u8)
Loading…
↗
22
929900660000
Washer, plain (646)
Loading…
↗
23
655245600100
Filter assembly
Loading…
↗
25
9321037M2500
O-ring (655)
Loading…
↗
27
953800860000
Nut (661)
Loading…
↗
28
682245660000
Bracket, filter
Loading…
↗
29
970850601000
Bolt
Loading…
↗
30
9044509M5300
Hose (l180)
Loading…
↗
31
90445090F600
Hose (l1500)
Loading…
↗
32
904670800400
Clip, pipe 6162435600
Loading…
↗
33
656W28100100
Tool kit
Loading…
↗
34
6E0281930094
Plug, water check
Loading…
↗
