9.9FMH (1995)
Fuel

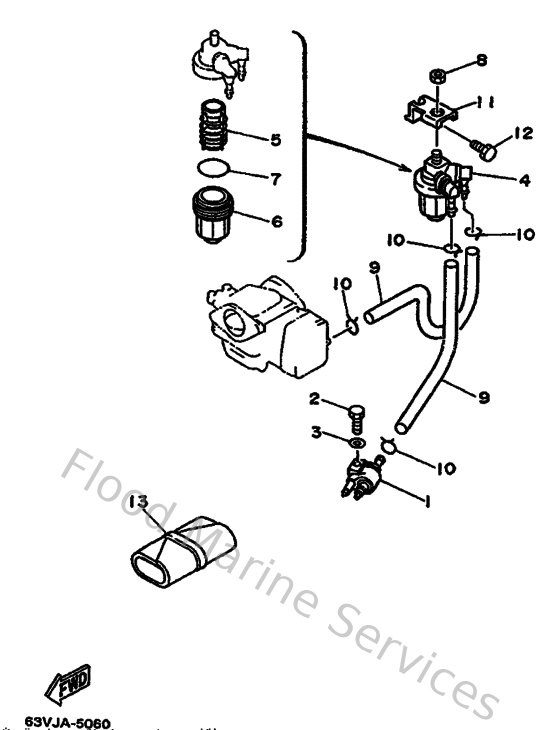

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
970950602000
Bolt(7u8)
Loading…
↗
3
929900660000
Washer, plain (646)
Loading…
↗
4
61N245601000
Filter assembly
Loading…
↗
5
61N245630000
Element, filter
Loading…
↗
6
61N245210000
Cup, filter
Loading…
↗
7
932103273800
O-ring(1wg)
Loading…
↗
8
953800860000
Nut (661)
Loading…
↗
9
9044509M0000
Hose (l180)
Loading…
↗
10
904670800400
Clip, pipe 6162435600
Loading…
↗
11
682245660000
Bracket, filter
Loading…
↗
12
970130601000
Bolt(63v)
Loading…
↗
13
656W28100200
Tool kit
Loading…
↗
