D150NETO (2001)
Fuel

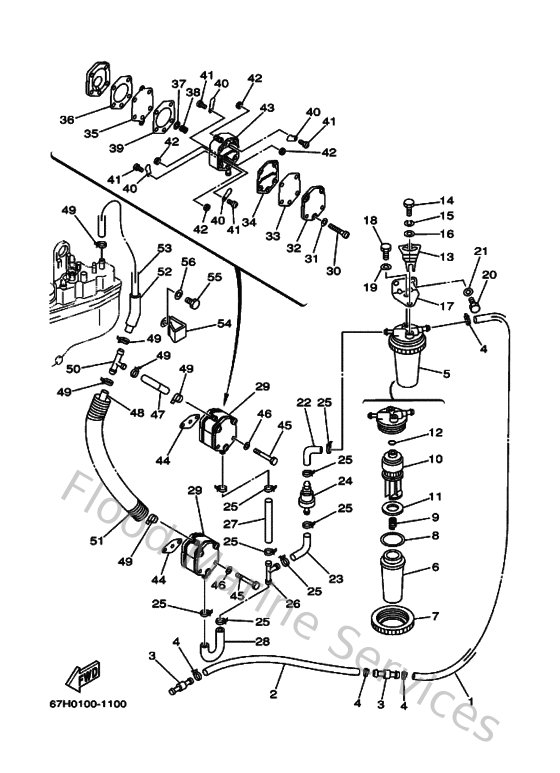

Diagram: Fuel
Parts List
Reference
Description
Price
1
61A243130000
Pipe 3
Loading…
↗
2
9044513M1700
Hose(l2700)
Loading…
↗
3
6R3243770000
Pipe, joint 3
Loading…
↗
4
904651009800
Clamp
Loading…
↗
5
65L245600000
Filter assembly
Loading…
↗
6
61A245210000
Cup, filter
Loading…
↗
7
61A245310000
Nut
Loading…
↗
8
61A245640000
O-ring
Loading…
↗
9
65L245770000
Spring
Loading…
↗
10
65L245630000
Element, filter
Loading…
↗
11
61A244690000
Float, water level
Loading…
↗
12
65L245640000
Gasket
Loading…
↗
13
65L245580000
Holder, filter
Loading…
↗
14
970950601600
Bolt, hexagon deep recess
Loading…
↗
15
929950610000
Washer(6a1)
Loading…
↗
16
902010606800
Washer,plate (6k8)
Loading…
↗
17
67H245660000
Bracket, Filter
Loading…
↗
18
970950601400
Bolt(gj3)
Loading…
↗
19
929950660000
Washer, plain (646)
Loading…
↗
21
929900660000
Washer, plain (646)
Loading…
↗
22
61A243110000
Pipe, fuel 1
Loading…
↗
23
61U243160000
Pipe 6
Loading…
↗
24
6R5244080000
Fuel feed assembly
Loading…
↗
25
9046511M1000
Clamp
Loading…
↗
26
6E5243780000
Pipe, joint 3
Loading…
↗
27
9044513M3100
Hose (L85)
Loading…
↗
28
67H243110000
Pipe, fuel 1
Loading…
↗
29
6E5244100300
Fuel pump assembly
Loading…
↗
30
985030503500
Screw, pan head (686)
Loading…
↗
31
929030560000
Washer, plain (646)
Loading…
↗
32
6E5244130000
Body 2
Loading…
↗
33
6E5244710000
Diaphragm
Loading…
↗
34
6E5244350000
Gasket, body 2
Loading…
↗
35
6E5244111000
Diaphragm
Loading…
↗
36
6E5244360000
Gasket, Body 3
Loading…
↗
37
6E5244240000
Seat, Spring
Loading…
↗
38
6E5244230000
Spring, diaphragm
Loading…
↗
39
6E5244340200
Gasket, body
Loading…
↗
40
6A0244210100
Valve, check
Loading…
↗
41
6A0143250000
Screw, pan head
Loading…
↗
42
953800360000
Nut (6g8)
Loading…
↗
43
6E5244121000
Body 1
Loading…
↗
44
65024431A000
Gasket,fuel pump
Loading…
↗
45
970800605000
Bolt(jf7)
Loading…
↗
48
6E5243131000
Pipe 3
Loading…
↗
51
6H1835570000
Tube
Loading…
↗
52
9044615M0700
Hose(6g4)
Loading…
↗
53
9044513M1200
Hose (L235)
Loading…
↗
54
9046505M8700
Clamp
Loading…
↗
55
970950601200
Bolt(gh1)
Loading…
↗
