E40XMH (1999)
Fuel

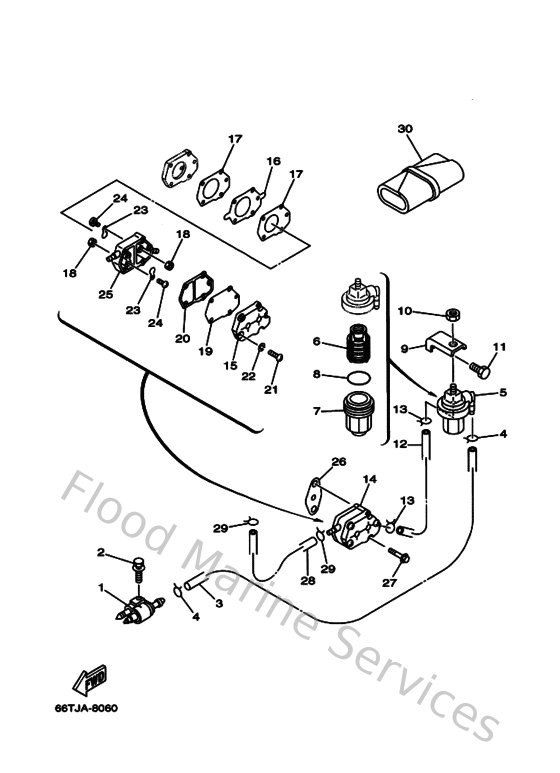

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
975950653000
Bolt, hexagon w/w deep recess
Loading…
↗
3
9044509M0800
Hose (l865)
Loading…
↗
4
904670800400
Clip, pipe 6162435600
Loading…
↗
5
61N245600000
Filter assembly
Loading…
↗
6
61N245630000
Element, filter
Loading…
↗
7
61N245210000
Cup, filter
Loading…
↗
8
932103273800
O-ring(1wg)
Loading…
↗
9
648245660100
Bracket, Filter
Loading…
↗
10
953800860000
Nut (661)
Loading…
↗
11
970950601400
Bolt(gj3)
Loading…
↗
12
904450908600
Hose (l1500)
Loading…
↗
14
692244100000
Fuel pump assembly
Loading…
↗
15
6A0244130000
Cover, pump
Loading…
↗
16
692244110000
Diaphragm
Loading…
↗
17
648244340100
Gasket, body
Loading…
↗
18
953800360000
Nut (6g8)
Loading…
↗
19
663244110000
Diaphragm
Loading…
↗
20
648244350200
Gasket, body 2
Loading…
↗
21
985030502800
Ybs86-530 screw,panhead
Loading…
↗
22
929900510000
Ybs67-5 washer, spring
Loading…
↗
23
62Y244210100
Valve, check
Loading…
↗
24
6A0143250000
Screw, pan head
Loading…
↗
25
6A0244120200
Body 1
Loading…
↗
26
65024431A000
Gasket,fuel pump
Loading…
↗
27
975950654000
Bolt, hexagon w/w deep recess
Loading…
↗
28
90445092K100
Hose (l420)
Loading…
↗
30
676W28100100
Tool kit
Loading…
↗
