F4AMH (2000)
Fuel

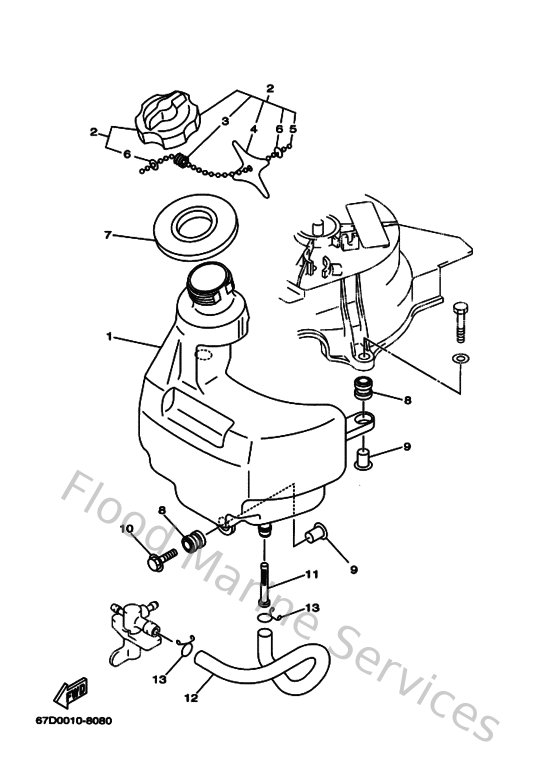

Diagram: Fuel
Parts List
Reference
Description
Price
1
67D241110000
Tank, Fuel
Loading…
↗
2
67D246100000
Cap assembly
Loading…
↗
3
905011026000
Spring, safety 6152463500
Loading…
↗
4
6J8217580000
Washer, special 2
Loading…
↗
6
6H1217570000
Washer, special 1
Loading…
↗
7
6L5246410000
Gasket, cap 1
Loading…
↗
8
6A0823170000
Damper, ignition coil
Loading…
↗
9
624425420000
Collar
Loading…
↗
10
9011906M8800
Bolt, with washer
Loading…
↗
11
6L5242510000
Strainer 1
Loading…
↗
12
67D243110000
Pipe, Fuel 1
Loading…
↗
13
9046713M1300
Clip(6m6)
Loading…
↗
