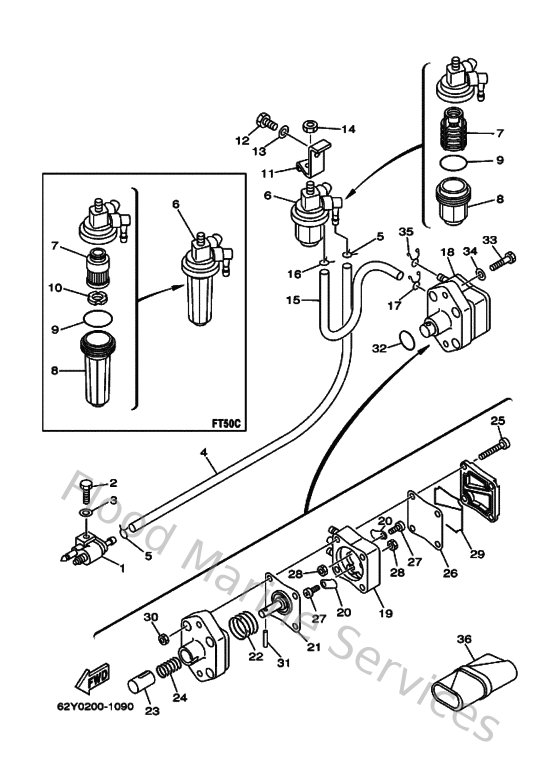

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


1
6G1243040200
Fuel pipe joint comp. 1
Loading…

↗
2
970950602500
Bolt
Loading…

↗
3
929950660000
Washer, plain (646)
Loading…

↗
4
9044510MA900
Hose (l1040)
Loading…

↗
5
9046709M0300
Clip(6k8)
Loading…

↗
6
61N245600000
Filter assembly
Loading…

↗
7
61N245631000
Element, filter
Loading…

↗
8
61N245210000
Cup, filter
Loading…

↗
9
932103273800
O-ring(1wg)
Loading…

↗
11
62Y245660000
Bracket, filter
Loading…

↗
12
970950801400
Bolt, hexagon deep recess
Loading…

↗
13
929900860000
Washer, plain (663)
Loading…

↗
14
953800860000
Nut (661)
Loading…

↗
15
9044510M4800
Hose (l400)
Loading…

↗
16
9046709M0900
Clip(6k8)
Loading…

↗
17
9046710M0400
Clip, pipe 1 (6e9)
Loading…

↗
18
62Y244100200
Fuel pump assembly
Loading…

↗
19
62Y244130000
Body 4
Loading…

↗
20
62Y244210100
Valve, check
Loading…

↗
21
62Y244110200
Diaphragm
Loading…

↗
22
62Y244230000
Spring, diaphragm
Loading…

↗
23
62Y131310100
Plunger
Loading…

↗
24
62Y244540000
Spring
Loading…

↗
25
62Y244440000
Screw
Loading…

↗
26
62Y244710000
Diaphragm
Loading…

↗
27
6A0143250000
Screw, pan head
Loading…

↗
28
953800360000
Nut (6g8)
Loading…

↗
29
62Y244520000
Packing
Loading…

↗
30
953800560000
Nut, hexagon (663)
Loading…

↗
31
62Y243740100
Pin
Loading…

↗
32
932102480000
O-ring
Loading…

↗
33
970950603000
Bolt(jf7)
Loading…

↗
36
62Y281000000
Tool kit
