Yamaha Outboard Parts - Fuel - F6BMH (2001) | Flood Marine

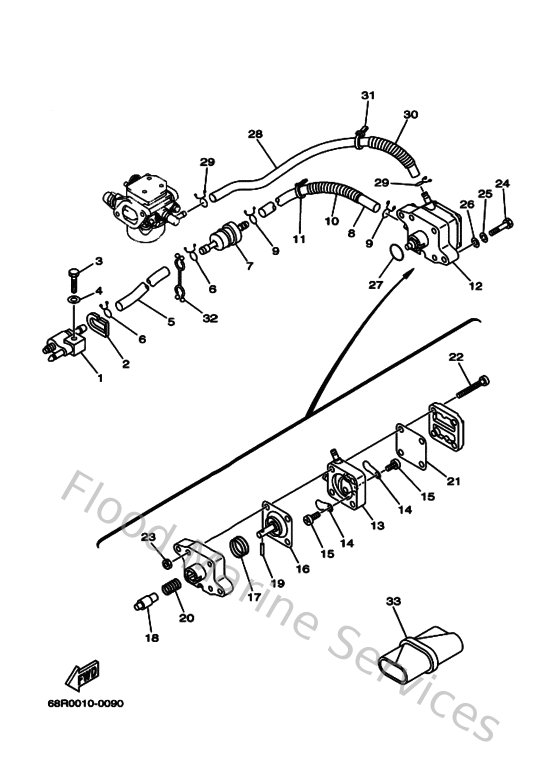

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


1
6G1243040200
Fuel pipe joint comp. 1
Loading…

↗
2
61N243290000
Seal
Loading…

↗
3
970950602500
Bolt
Loading…

↗
4
929900660000
Washer, plain (646)
Loading…

↗
5
9044510M1800
Hose (l400)
Loading…

↗
6
9046709M0900
Clip(6k8)
Loading…

↗
7
68T242510100
Strainer 1
Loading…

↗
8
9044510M5000
Hose (l400)
Loading…

↗
10
9044614M6600
Hose(64x)
Loading…

↗
11
904651009800
Clamp
Loading…

↗
12
68T244100000
Fuel pump assembly
Loading…

↗
13
66M244130100
Body 2
Loading…

↗
14
6A0244210100
Valve, check
Loading…

↗
15
6E7143250000
Screw, pan head
Loading…

↗
16
66M244110000
Diaphragm
Loading…

↗
17
66M244230000
Spring, diaphragm
Loading…

↗
18
66M131310000
Plunger
Loading…

↗
19
66M243740000
Pin
Loading…

↗
20
66M244540000
Spring
Loading…

↗
21
66M244710100
Diaphragm
Loading…

↗
22
66M244440000
Screw
Loading…

↗
23
953800560000
Nut, hexagon (663)
Loading…

↗
24
970950603000
Bolt(jf7)
Loading…

↗
25
929950610000
Washer(6a1)
Loading…

↗
26
929950660000
Washer, plain (646)
Loading…

↗
27
9321020M6500
O-ring
Loading…

↗
28
904451001600
Hose (l280)
Loading…

↗
31
9046511M1000
Clamp
Loading…

↗
32
9046410M5300
Clamp
Loading…

↗
33
68T281000000
Tool kit
