F8BMH (1990)
Fuel

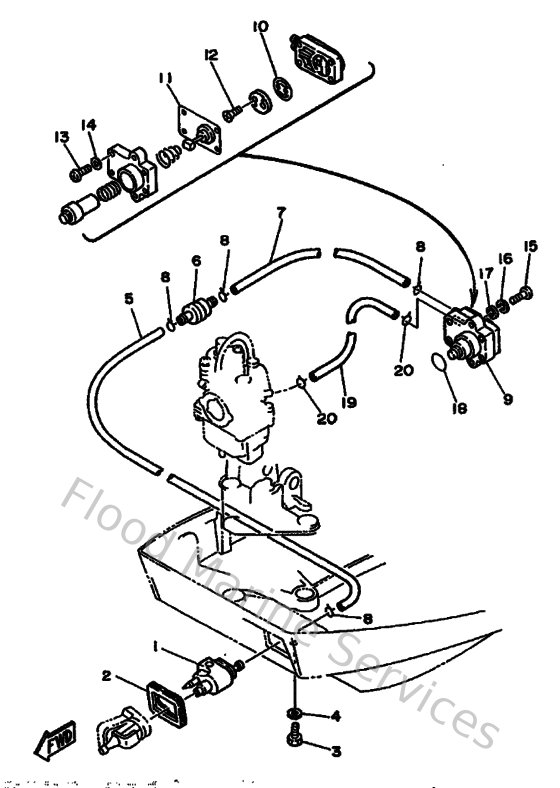

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
6G8243290000
Seal
Loading…
↗
3
973950602000
Bolt(7u8)
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
6G8243110000
Pipe, fuel 1
Loading…
↗
6
646242510200
Strainer 1
Loading…
↗
7
90445090F600
Hose (l1500)
Loading…
↗
8
904670800400
Clip, pipe 6162435600
Loading…
↗
9
6G8244100100
Fuel pump assembly
Loading…
↗
10
6G8244210000
Valve, check
Loading…
↗
11
999990385400
Diaphragm
Loading…
↗
12
987800300800
Screw, flat head(6t0)
Loading…
↗
13
985030401400
Screw, pan head(ga5)
Loading…
↗
14
929900420000
Ybs66-4 washer, plain
Loading…
↗
15
985800602500
Screw, pan head(6b0)
Loading…
↗
16
929950610000
Washer(6a1)
Loading…
↗
18
9321020M6500
O-ring
Loading…
↗
19
9044509M7500
Hose (l1500)
Loading…
↗
