F9.9BMH (1994)
Fuel

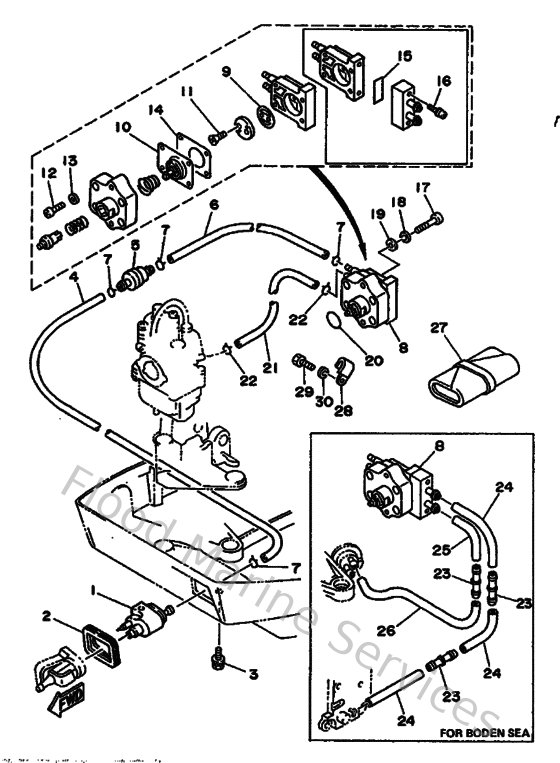

Diagram: Fuel
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
6G8243290000
Seal
Loading…
↗
3
975950652000
Bolt(7u8)
Loading…
↗
4
6G8243110000
Pipe, fuel 1
Loading…
↗
5
646242510200
Strainer 1
Loading…
↗
6
904450906500
Hose (l1500)
Loading…
↗
7
904670800400
Clip, pipe 6162435600
Loading…
↗
8
6G824410E100
Fuel Pump assembly
Loading…
↗
9
6G8244210000
Valve, check
Loading…
↗
10
6G8244110200
Diaphragm
Loading…
↗
11
987800300800
Screw, flat head(6t0)
Loading…
↗
12
985030401400
Screw, pan head(ga5)
Loading…
↗
13
929900420000
Ybs66-4 washer, plain
Loading…
↗
14
6G8244710000
Diaphragm
Loading…
↗
16
677244440900
Screw
Loading…
↗
17
985800602500
Screw, pan head(6b0)
Loading…
↗
18
929950610000
Washer(6a1)
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
932102080100
O-ring
Loading…
↗
21
904450910500
Hose (l420)
Loading…
↗
23
6G8243760000
Pipe, joint 1
Loading…
↗
25
6H4243120000
Pipe, fuel 2
Loading…
↗
26
90445094K700
Hose (l180)
Loading…
↗
27
676W28100100
Tool kit
Loading…
↗
28
904650802800
Clamp (1e6)
Loading…
↗
29
970130601200
Bolt(gh1)
Loading…
↗
