Yamaha Outboard Parts - Fuel - F9.9CMH (2000) | Flood Marine

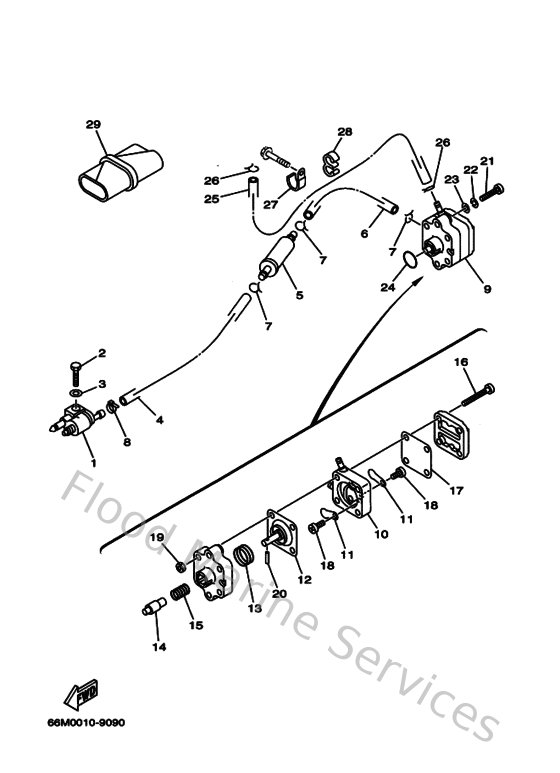

Diagram: Fuel

Diagram

Parts List

Reference
Description
Price


1
6G1243040200
Fuel pipe joint comp. 1
Loading…

↗
2
970950602000
Bolt(7u8)
Loading…

↗
3
929900660000
Washer, plain (646)
Loading…

↗
4
9044510M4000
Hose (l400)
Loading…

↗
5
65W242510000
Strainer 1
Loading…

↗
6
9044510M4300
Hose (l400)
Loading…

↗
7
9046709M0300
Clip(6k8)
Loading…

↗
8
9046511M1000
Clamp
Loading…

↗
9
66M244101100
Fuel pump assembly
Loading…

↗
10
66M244130100
Body 2
Loading…

↗
11
6A0244210100
Valve, check
Loading…

↗
12
66M244110100
Diaphragm
Loading…

↗
13
66M244230000
Spring, diaphragm
Loading…

↗
14
66M131310000
Plunger
Loading…

↗
15
66M244540000
Spring
Loading…

↗
16
66M244440000
Screw
Loading…

↗
17
66M244710100
Diaphragm
Loading…

↗
18
6A0143250000
Screw, pan head
Loading…

↗
19
953800560000
Nut, hexagon (663)
Loading…

↗
20
66M243740000
Pin
Loading…

↗
21
978800603000
Screw, pan head(6e0)
Loading…

↗
22
929950610000
Washer(6a1)
Loading…

↗
24
9321020M6500
O-ring
Loading…

↗
27
9046506M8600
Clamp
Loading…

↗
28
9046409M3100
Clamp(6m7)
Loading…

↗
29
62Y281000000
Tool kit
Loading…

↗
