Z175GETOL (2001)
Fuel

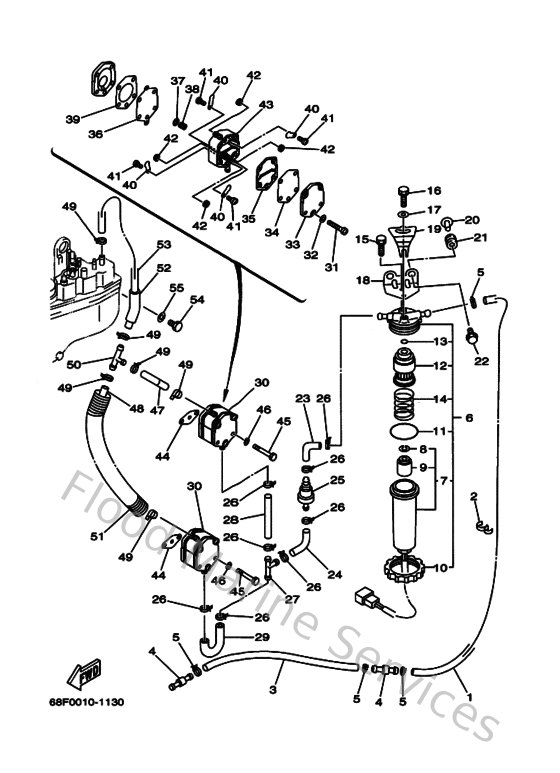

Diagram: Fuel
Parts List
Reference
Description
Price
1
61A243130000
Pipe 3
Loading…
↗
2
9046413M3400
Clamp(6r3)
Loading…
↗
3
6N7243130000
Pipe 3
Loading…
↗
4
6R3243770000
Pipe, joint 3
Loading…
↗
5
904651009800
Clamp
Loading…
↗
6
68F245600000
Filter assembly
Loading…
↗
7
68F245620000
Cup, filter
Loading…
↗
8
68F245190000
Clip
Loading…
↗
9
68F244690000
Float, Water Level
Loading…
↗
10
65L245310000
Nut
Loading…
↗
11
61A245640000
O-ring
Loading…
↗
12
68F245630000
Element, filter
Loading…
↗
13
65L245640000
Gasket
Loading…
↗
14
68F245670000
Spring
Loading…
↗
15
975950651400
Bolt(gj3)
Loading…
↗
16
9011906M4100
Bolt, with washer(6r6)
Loading…
↗
17
902010606800
Washer,plate (6k8)
Loading…
↗
18
68F245660000
Bracket, filter
Loading…
↗
19
65L245580000
Holder, filter
Loading…
↗
20
9038706M6000
Collar (6h3)
Loading…
↗
21
9048010M2300
Grommet(6k7)
Loading…
↗
22
9011906M8800
Bolt, with washer
Loading…
↗
23
61A243110000
Pipe, fuel 1
Loading…
↗
24
61U243161000
Pipe 6
Loading…
↗
25
6R5244080000
Fuel feed assembly
Loading…
↗
26
9046511M1000
Clamp
Loading…
↗
27
6E5243780000
Pipe, joint 3
Loading…
↗
28
9044513M3100
Hose (L85)
Loading…
↗
29
67H243111000
Pipe, Fuel 1
Loading…
↗
30
6E5244100300
Fuel pump assembly
Loading…
↗
31
985030503500
Screw, pan head (686)
Loading…
↗
32
929900560000
Washer, plain (646)
Loading…
↗
33
6E5244130000
Body 2
Loading…
↗
34
6E5244710000
Diaphragm
Loading…
↗
35
6E5244350000
Gasket, body 2
Loading…
↗
36
6E5244110000
Diaphragm
Loading…
↗
37
648244240000
Seat,spring
Loading…
↗
38
6E5244230000
Spring, diaphragm
Loading…
↗
39
6E5244340200
Gasket, body
Loading…
↗
40
6A0244210100
Valve, check
Loading…
↗
41
6A0143250000
Screw, pan head
Loading…
↗
42
953800360000
Nut (6g8)
Loading…
↗
43
6E5244121000
Body 1
Loading…
↗
44
65024431A000
Gasket,fuel pump
Loading…
↗
45
970800605000
Bolt(jf7)
Loading…
↗
46
929950660000
Washer, plain (646)
Loading…
↗
47
61U243160000
Pipe 6
Loading…
↗
48
6E5243131000
Pipe 3
Loading…
↗
51
6H1835570000
Tube
Loading…
↗
52
9044615M0700
Hose(6g4)
Loading…
↗
53
9044513M1200
Hose (L235)
Loading…
↗
54
970950601200
Bolt(gh1)
Loading…
↗
