175AETOL (1986)
Fuel 1

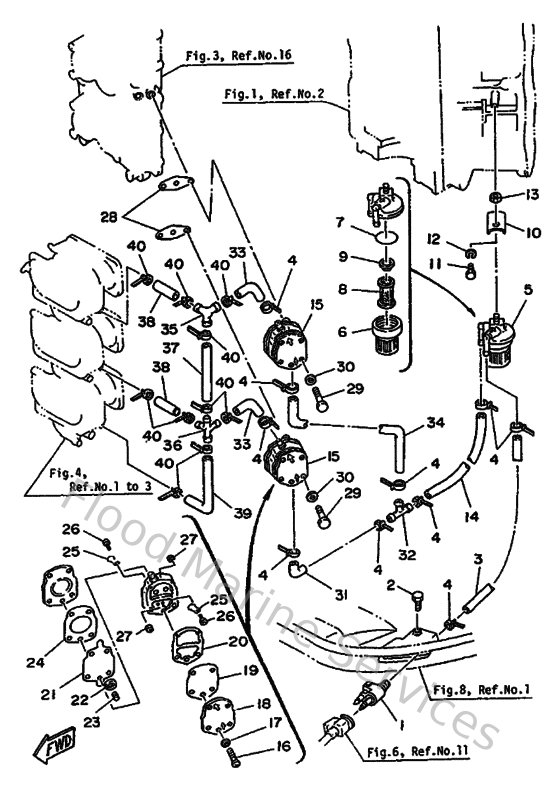

Diagram: Fuel 1
Parts List
Reference
Description
Price
1
6E5243040094
Fuel pipe joint comp. 1
Loading…
↗
2
973130602000
Bolt(7u8)
Loading…
↗
4
9046511M1000
Clamp
Loading…
↗
5
6R3245600000
Filter assembly
Loading…
↗
7
9321037M2500
O-ring (655)
Loading…
↗
8
655245630000
Element, filter
Loading…
↗
9
655245640000
Packing, filter
Loading…
↗
10
648245660100
Bracket, Filter
Loading…
↗
11
970950601400
Bolt(gj3)
Loading…
↗
12
929030610000
Washer(6a1)
Loading…
↗
13
953030860000
Nut(6l2)
Loading…
↗
14
6G5243140000
Pipe 4
Loading…
↗
15
6E5244100100
Fuel pump assembly
Loading…
↗
16
985030503500
Screw, pan head (686)
Loading…
↗
17
929900560000
Washer, plain (646)
Loading…
↗
18
6E5244130000
Body 2
Loading…
↗
19
6E5244710000
Diaphragm
Loading…
↗
20
6E5244350000
Gasket, body 2
Loading…
↗
21
6E5244110000
Diaphragm
Loading…
↗
22
648244240000
Seat,spring
Loading…
↗
23
6E5244230000
Spring, diaphragm
Loading…
↗
24
6E5244340200
Gasket, body
Loading…
↗
25
6A0244210100
Valve, check
Loading…
↗
28
650244310000
Gasket,fuel pump
Loading…
↗
29
970130605000
Bolt, hexagon
Loading…
↗
30
929030660000
Washer, plain (646)
Loading…
↗
31
6E5243150000
Pipe 5
Loading…
↗
32
6E5243780000
Pipe, joint 3
Loading…
↗
34
6G5243150000
Pipe 5
Loading…
↗
35
6G5243760000
Pipe, joint 1
Loading…
↗
36
6G5243770000
Pipe, joint 2
Loading…
↗
37
6G5243170100
Pipe 7
Loading…
↗
39
6G5243190000
Pipe, Oil
Loading…
↗
