225BETOL (1992)
Fuel 1

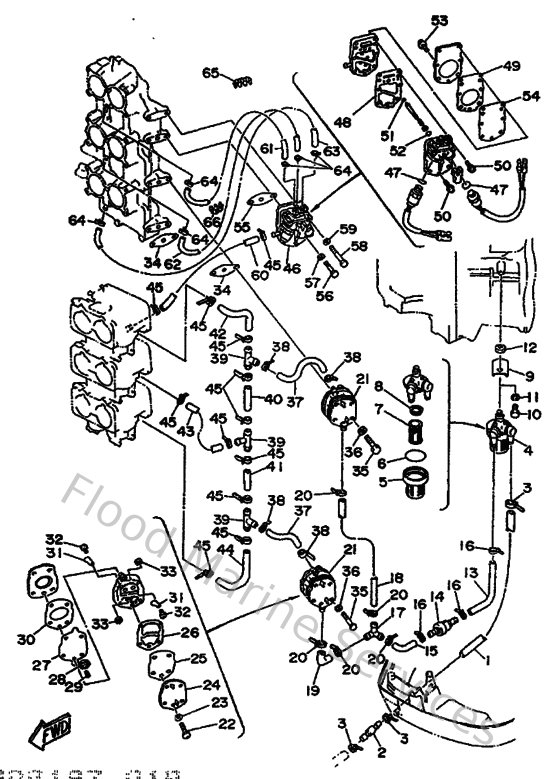

Diagram: Fuel 1
Parts List
Reference
Description
Price
2
6R3243770000
Pipe, joint 3
Loading…
↗
3
9046511M1000
Clamp
Loading…
↗
4
6R3245600000
Filter assembly
Loading…
↗
6
9321037M2500
O-ring (655)
Loading…
↗
7
6F5245630000
Element, filter
Loading…
↗
8
655245640000
Packing, filter
Loading…
↗
9
648245660100
Bracket, Filter
Loading…
↗
10
970950601400
Bolt(gj3)
Loading…
↗
11
929900610000
Washer(6a1)
Loading…
↗
12
988800810000
Nut, hex.
Loading…
↗
13
6R5243150000
Pipe 5
Loading…
↗
14
6R5244080000
Fuel feed assembly
Loading…
↗
15
6R5243140000
Pipe 4
Loading…
↗
16
904651009800
Clamp
Loading…
↗
17
6G5243760000
Pipe, joint 1
Loading…
↗
18
6K7243150000
Pipe 5
Loading…
↗
19
6E5243150000
Pipe 5
Loading…
↗
21
6E5244100300
Fuel pump assembly
Loading…
↗
22
985800503500
Screw, pan head (686)
Loading…
↗
23
929900560000
Washer, plain (646)
Loading…
↗
24
6E5244130000
Body 2
Loading…
↗
25
6E5244710000
Diaphragm
Loading…
↗
26
6E5244350000
Gasket, body 2
Loading…
↗
27
6E5244110000
Diaphragm
Loading…
↗
28
648244240000
Seat,spring
Loading…
↗
29
6E5244230000
Spring, diaphragm
Loading…
↗
30
6E5244340200
Gasket, body
Loading…
↗
31
6A0244210100
Valve, check
Loading…
↗
32
6A0143250000
Screw, pan head
Loading…
↗
33
953800360000
Nut (6g8)
Loading…
↗
34
65024431A000
Gasket,fuel pump
Loading…
↗
35
973950605000
Bolt(jf7)
Loading…
↗
36
929900660000
Washer, plain (646)
Loading…
↗
37
6G5243161000
Pipe 6
Loading…
↗
39
6E5243780000
Pipe, joint 3
Loading…
↗
40
9044513M0300
Hose (l90)
Loading…
↗
41
904451357900
Hose (l90)
Loading…
↗
42
6K7243170000
Pipe 7
Loading…
↗
43
6K7243180000
Pipe, overflow
Loading…
↗
44
6K7243190000
Pipe, oil
Loading…
↗
46
6R5139210100
Prime Starter
Loading…
↗
47
6R5244790000
O-Ring
Loading…
↗
48
6R5244350000
Gasket, Body 2
Loading…
↗
49
6R5244340000
Gasket Body
Loading…
↗
50
985800552500
Screw, panhead (a93)
Loading…
↗
51
6R5244890000
O-Ring
Loading…
↗
52
6E5149970000
O-ring
Loading…
↗
53
979800412500
Screw, with washer
Loading…
↗
54
6R5244110000
Diaphragm
Loading…
↗
56
973950603500
Bolt(j52)
Loading…
↗
58
973950605500
Bolt, hexagon w/w deep recess
Loading…
↗
60
6R5243160000
Pipe 6
Loading…
↗
61
9044507M2400
Hose (l390)
Loading…
↗
62
9044507M4600
Hose (l390)
Loading…
↗
63
904450700600
Hose (l770)
Loading…
↗
64
9046807M0200
Clip (6e5)
Loading…
↗
65
9046407M0500
Clamp (6g5)
Loading…
↗
66
9046407M2000
Clamp(6h0)
Loading…
↗
