L130BETOL (1996)
Fuel 1

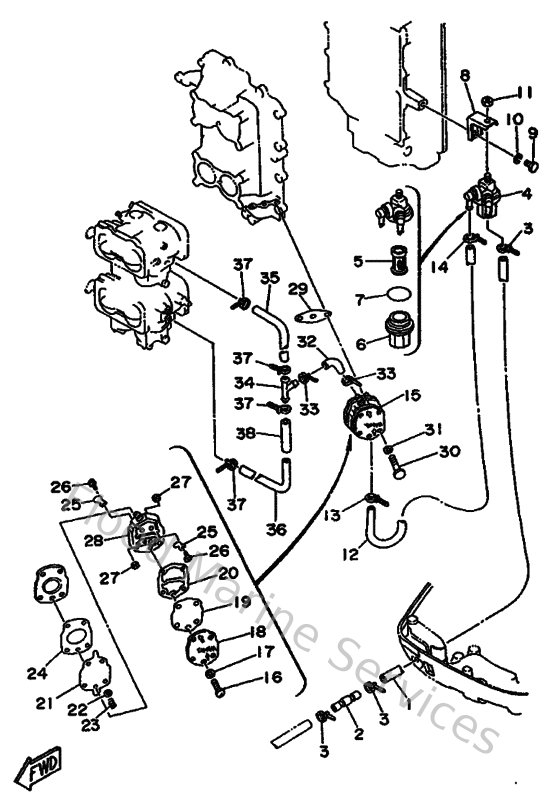

Diagram: Fuel 1
Parts List
Reference
Description
Price
1
6N7243130000
Pipe 3
Loading…
↗
4
6R3245600000
Filter assembly
Loading…
↗
5
61N245630000
Element, filter
Loading…
↗
6
61N245210000
Cup, filter
Loading…
↗
8
6E5245660000
Bracket, filter
Loading…
↗
12
6E5243140000
Pipe 4
Loading…
↗
15
6E5244100300
Fuel pump assembly
Loading…
↗
18
6E5244130000
Body 2
Loading…
↗
19
6E5244710000
Diaphragm
Loading…
↗
20
6E5244350000
Gasket, body 2
Loading…
↗
21
6E5244110000
Diaphragm
Loading…
↗
22
648244240000
Seat,spring
Loading…
↗
23
6E5244230000
Spring, diaphragm
Loading…
↗
24
6E5244340200
Gasket, body
Loading…
↗
25
6A0244210100
Valve, check
Loading…
↗
26
6A0143250000
Screw, pan head
Loading…
↗
28
6E5244120200
Body 1
Loading…
↗
29
65024431A000
Gasket,fuel pump
Loading…
↗
32
6G5243161000
Pipe 6
Loading…
↗
34
6E5243761000
Pipe, joint 1
Loading…
↗
35
6G5243181000
Hose (l90)
Loading…
↗
36
6G5243191000
Pipe 9
Loading…
↗
