115AETOL (1987)
Fuel 2

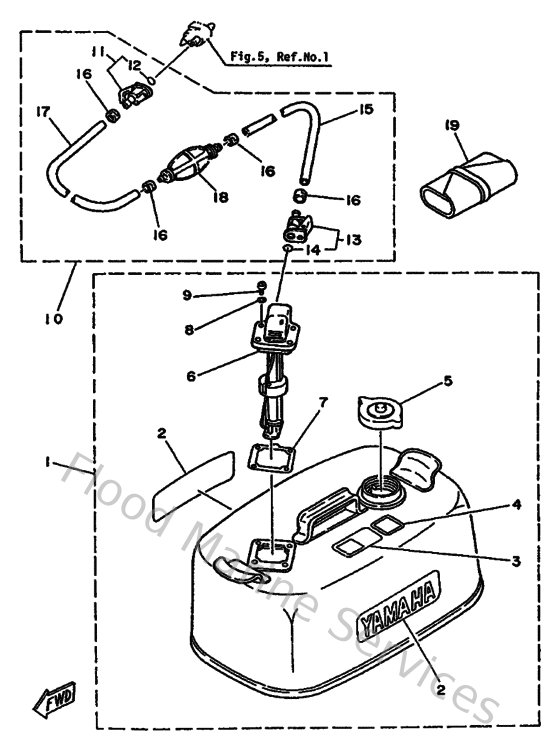

Diagram: Fuel 2
Parts List
Reference
Description
Price
5
6Y1246100000
Cap assembly
Loading…
↗
6
6Y1242600100
Fuel meter assembly
Loading…
↗
7
6Y1242680000
Gasket, fuel meter
Loading…
↗
8
6Y1243290000
Seal
Loading…
↗
9
9015705M1900
Screw, pan head
Loading…
↗
10
6Y2243060500
Fuel pipe comp. 1
Loading…
↗
11
6E5243050100
Fuel pipe joint comp. 2
Loading…
↗
12
932100828700
O-ring (655)
Loading…
↗
13
6Y1243050100
Fuel pipe joint comp. 2
Loading…
↗
15
6E5243510100
Band 1
Loading…
↗
16
6E5243515100
Band 1
Loading…
↗
18
6Y2243600200
Primer pump assembly
Loading…
↗
19
6E0281000100
Tool kit
Loading…
↗
