175BETOL (1992)
Fuel 2

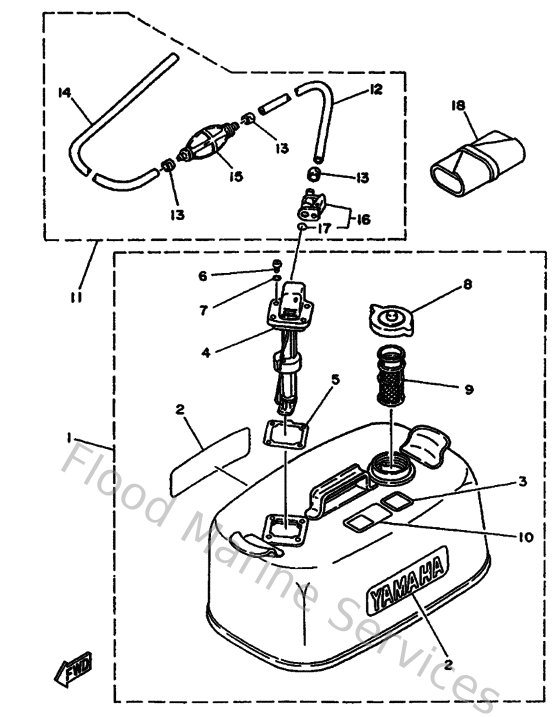

Diagram: Fuel 2
Parts List
Reference
Description
Price
4
6Y1242600200
Fuel meter assembly
Loading…
↗
5
6Y1242680000
Gasket, fuel meter
Loading…
↗
6
985860501600
Screw, pan head
Loading…
↗
7
6Y1243290000
Seal
Loading…
↗
9
6Y1241670000
Strainer
Loading…
↗
11
6Y2243064000
Fuel pipe comp. 1
Loading…
↗
12
9044513M0100
Hose (l2050)
Loading…
↗
13
6E5243515100
Band 1
Loading…
↗
15
6Y2243605100
Primer pump assembly
Loading…
↗
16
6Y2243050100
Fuel pipe joint comp. 2
Loading…
↗
17
932100828700
O-ring (655)
Loading…
↗
18
656W28100100
Tool kit
Loading…
↗
