25JETO (2001)
Fuel 2

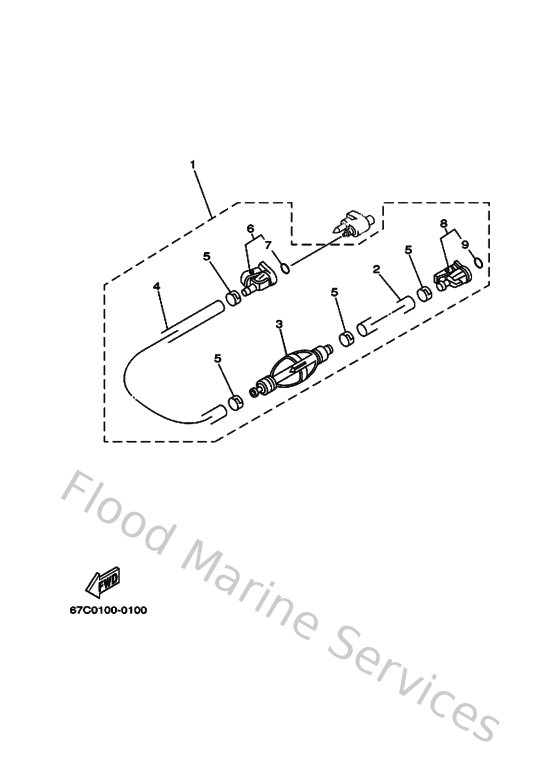

Diagram: Fuel 2
Parts List
Reference
Description
Price
1
6Y1243065300
Fuel pipe comp. 1
Loading…
↗
2
9044511M0600
Hose (l3000)
Loading…
↗
3
6Y1243605200
Primer pump assembly
Loading…
↗
4
9044511M7800
Hose (l1000)
Loading…
↗
5
650243515100
Band 1
Loading…
↗
6
6G1243050300
Fuel pipe joint comp. 2
Loading…
↗
7
932100828700
O-ring (655)
Loading…
↗
8
6Y1243050400
Fuel pipe joint comp. 2
Loading…
↗
