F4AMH (2000)
Fuel 2

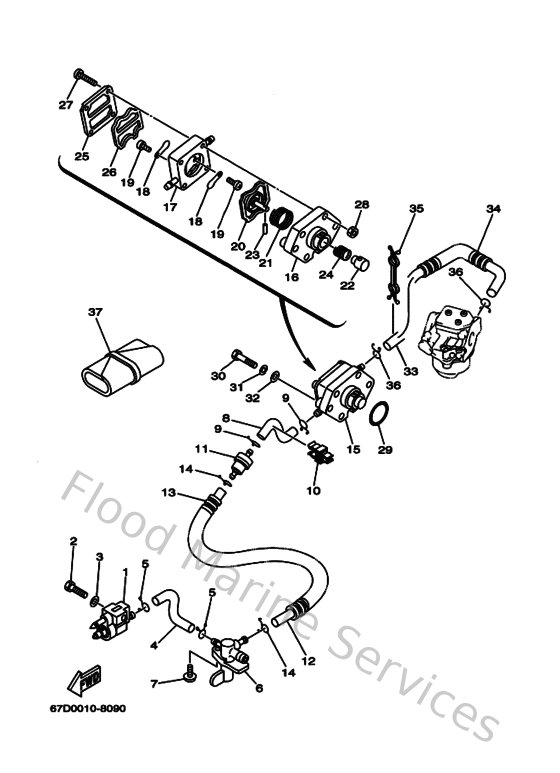

Diagram: Fuel 2
Parts List
Reference
Description
Price
1
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
2
970950602500
Bolt
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
67D243120000
Pipe 2
Loading…
↗
5
9046709M0900
Clip(6k8)
Loading…
↗
6
67D245000000
Fuel cock assembly 1
Loading…
↗
7
9015906M1000
Screw, with washer(6l5)
Loading…
↗
8
67D243130000
Pipe 3
Loading…
↗
10
9046410M5200
Clamp
Loading…
↗
11
646242510200
Strainer 1
Loading…
↗
12
9044510M6700
Hose (l400)
Loading…
↗
13
9044614M1200
Hose(6tc)
Loading…
↗
15
67D244100300
Fuel pump assembly
Loading…
↗
16
67D244120000
Body 1
Loading…
↗
17
67D244130200
Body 2
Loading…
↗
18
6A0244210100
Valve, check
Loading…
↗
19
6E7143250000
Screw, pan head
Loading…
↗
20
67D244110000
Diaphragm
Loading…
↗
21
67D244230000
Spring, diaphragm
Loading…
↗
22
67D131310000
Plunger
Loading…
↗
23
66M243740000
Pin
Loading…
↗
24
67D244540000
Spring
Loading…
↗
25
67D244140100
Body 3
Loading…
↗
26
66M244710000
Diaphragm
Loading…
↗
27
67D244440000
Screw
Loading…
↗
28
953800460000
Nut,hex
Loading…
↗
29
932102780600
O-ring
Loading…
↗
30
970950603000
Bolt(jf7)
Loading…
↗
31
929950610000
Washer(6a1)
Loading…
↗
33
9044510M4300
Hose (l400)
Loading…
↗
35
9046410M5300
Clamp
Loading…
↗
