F9.9BMH (1987)
Fuel 2

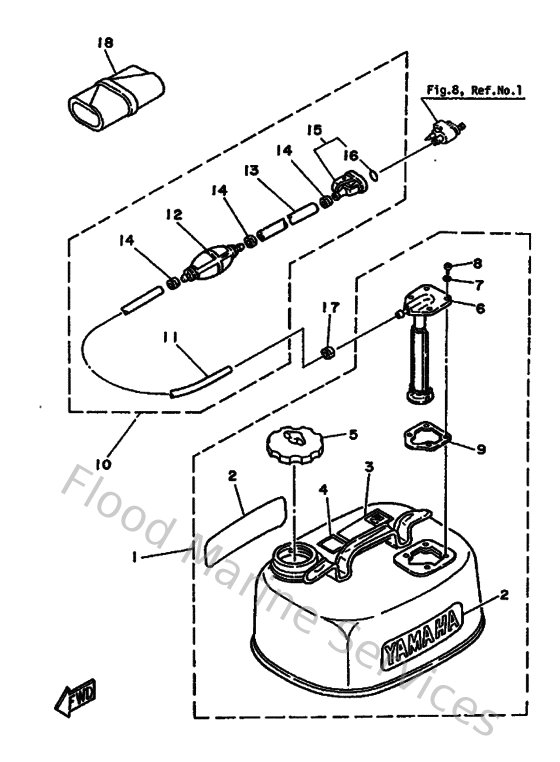

Diagram: Fuel 2
Parts List
Reference
Description
Price
5
647246100300
Cap assembly
Loading…
↗
6
6Y0242750000
Fuel Meter Comp
Loading…
↗
7
6Y1243290000
Seal
Loading…
↗
8
9015705M1900
Screw, pan head
Loading…
↗
9
6Y1242680000
Gasket, fuel meter
Loading…
↗
11
9044511M7900
Hose (l3000)
Loading…
↗
12
6YL243606300
Primer pump assembly
Loading…
↗
13
9044511M0500
Hose (l1000)
Loading…
↗
14
650243510100
Band 1
Loading…
↗
15
6G1243050500
Fuel pipe joint comp. 2
Loading…
↗
16
932100828700
O-ring (655)
Loading…
↗
18
6G8281000100
Tool kit
Loading…
↗
