L200AETOL (1988)
Fuel 2

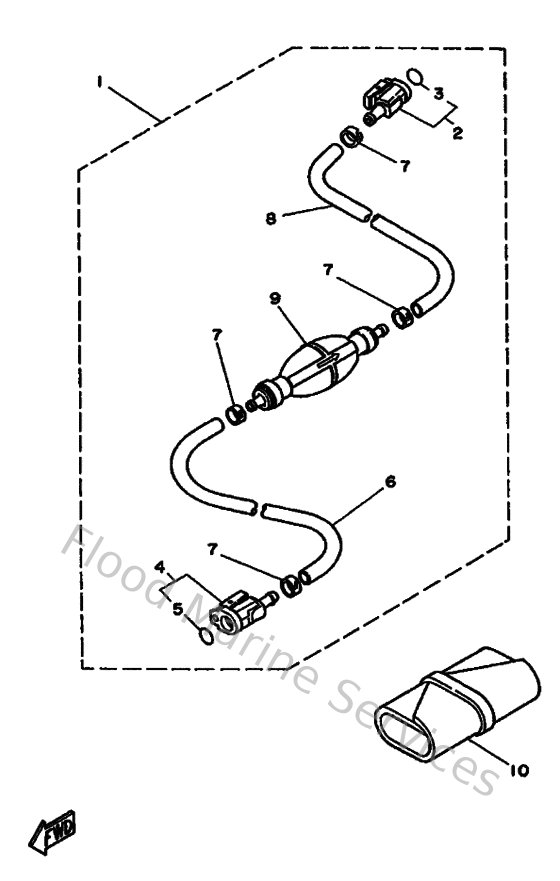

Diagram: Fuel 2
Parts List
Reference
Description
Price
1
6Y2243065100
Fuel pipe comp. 1
Loading…
↗
2
6E5243050100
Fuel pipe joint comp. 2
Loading…
↗
3
932100828700
O-ring (655)
Loading…
↗
4
6Y2243050100
Fuel pipe joint comp. 2
Loading…
↗
6
9044513M0100
Hose (l2050)
Loading…
↗
7
6E5243515100
Band 1
Loading…
↗
9
6Y2243605100
Primer pump assembly
Loading…
↗
10
656W28100100
Tool kit
Loading…
↗
