L250AETO (1996)
Fuel 2

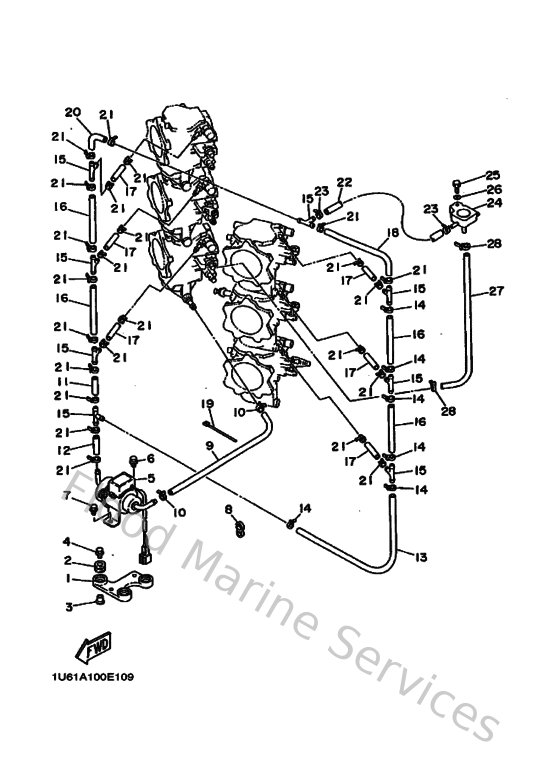

Diagram: Fuel 2
Parts List
Reference
Description
Price
1
61A244910094
Bracket, Fuel Pump
Loading…
↗
2
6A0823170000
Damper, ignition coil
Loading…
↗
3
624425420000
Collar
Loading…
↗
4
9011906M6500
Bolt, with washer
Loading…
↗
5
61A139100100
Fuel pump assembly
Loading…
↗
6
975950851400
Bolt, hexagon deep recess
Loading…
↗
7
975950651400
Bolt(gj3)
Loading…
↗
8
9046413M3400
Clamp(6r3)
Loading…
↗
9
4KN243110100
Pipe, fuel 1
Loading…
↗
10
9046511M1000
Clamp
Loading…
↗
11
9044510M3100
Hose (l45)
Loading…
↗
12
9044510M4300
Hose (l400)
Loading…
↗
13
9044510M4000
Hose (l400)
Loading…
↗
15
688243780000
Pipe, joint
Loading…
↗
16
9044510M5300
Hose (l400)
Loading…
↗
17
61A243160000
Pipe 6
Loading…
↗
18
6A4243150000
Pipe 5
Loading…
↗
19
9046411M2400
Clamp(6h1)
Loading…
↗
24
61A244700100
Fuel Regulator.assembly
Loading…
↗
25
970800603500
Bolt(j52)
Loading…
↗
26
929900660000
Washer, plain (646)
Loading…
↗
27
9044510M9200
Hose
Loading…
↗
