Yamaha Outboard Parts - Fuel Injection Nozzle - F115AET (2001) | Flood Marine

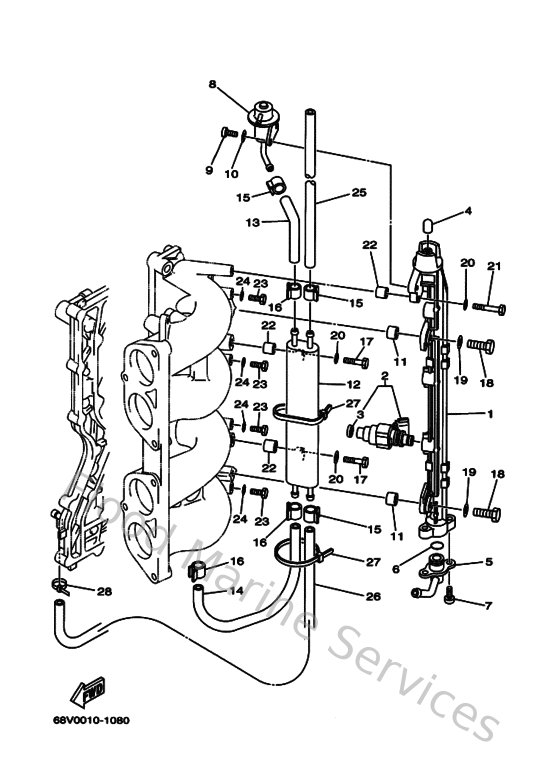

Diagram: Fuel Injection Nozzle

Diagram

Parts List

Reference
Description
Price


1
68V131600000
Delivery pipe assembly 1
Loading…

↗
2
68V8A3600000
Injector unit
Loading…

↗
3
68V137660000
Rubber, injector
Loading…

↗
4
68V142250000
Cap
Loading…

↗
5
68V134350000
Nipple
Loading…

↗
6
68V143970000
O-ring
Loading…

↗
7
68V811470000
Screw 3
Loading…

↗
8
68V139060100
Regulator, pressure (with o-ri
Loading…

↗
9
68V145650000
Screw
Loading…

↗
10
68V143560000
Washer, spring
Loading…

↗
11
68V142640000
Collar
Loading…

↗
12
68V218410000
Cooler
Loading…

↗
13
68V139710000
Pipe Fuel 1
Loading…

↗
14
68V139720000
Pipe, fuel 2
Loading…

↗
15
68V245190000
Clip
Loading…

↗
16
68V2411M0000
Clip
Loading…

↗
17
68V147770000
Bolt
Loading…

↗
18
68V144280000
Bolt
Loading…

↗
19
68V144750000
Washer
Loading…

↗
20
68V143570000
Washer, plain
Loading…

↗
21
68V144460000
Bolt
Loading…

↗
22
68V142650000
Collar
Loading…

↗
23
970850601000
Bolt
Loading…

↗
24
904300601400
Gasket 256113960000
Loading…

↗
25
68V2247A0000
Hose 1
Loading…

↗
26
68V2247B0000
Hose 2
Loading…

↗
27
68V2481H0000
Clamp
Loading…

↗
28
9046511M1000
Clamp
Loading…

↗
