L225FETO (2001)
Fuel Injection Nozzle

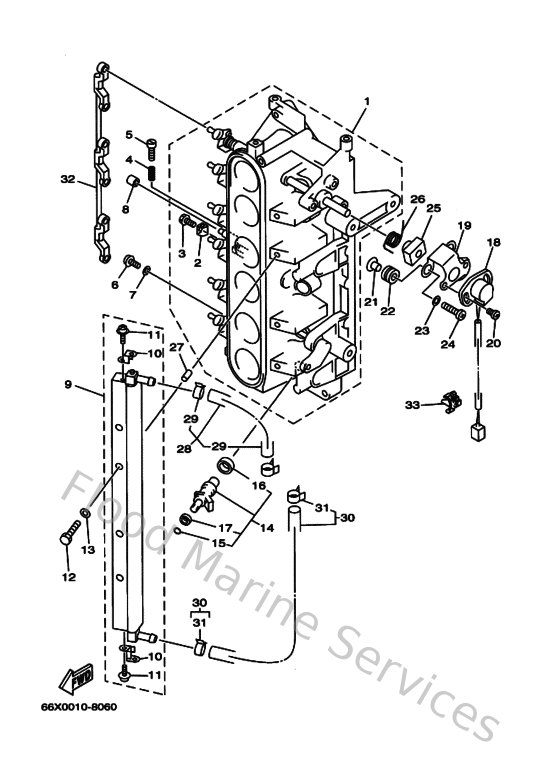

Diagram: Fuel Injection Nozzle
Parts List
Reference
Description
Price
1
67H137510000
Body, throttle 1
Loading…
↗
2
65L145270000
Plate
Loading…
↗
3
65L145650000
Screw
Loading…
↗
4
65L143340000
Spring, air adjusting
Loading…
↗
5
65L145230000
Screw, stop
Loading…
↗
6
6K5145920000
Screw
Loading…
↗
7
902010555200
Washer, plate(65j)
Loading…
↗
8
65L145780000
Collar
Loading…
↗
10
60V138540000
Plate 4
Loading…
↗
12
65L135730000
Bolt 1
Loading…
↗
13
65L139950000
Washer
Loading…
↗
14
65L137610000
Injector assembly
Loading…
↗
15
65L137690000
O-ring
Loading…
↗
16
65L137640000
Gasket
Loading…
↗
17
65L137660000
Rubber, injector
Loading…
↗
18
6X2858851000
Throttle sensor assembly
Loading…
↗
19
6K7858860000
Bracket
Loading…
↗
20
979850521200
Screw, with washer(6g7)
Loading…
↗
21
9038705M0000
Collar(6k7)
Loading…
↗
22
9048010M2300
Grommet(6k7)
Loading…
↗
23
65L145960000
Washer
Loading…
↗
24
979850533000
Screw, with washer(61b)
Loading…
↗
25
65L145730000
Lever
Loading…
↗
26
65L145790000
Spring
Loading…
↗
27
65L139960000
Insert
Loading…
↗
28
66K139710000
Pipe, fuel 1
Loading…
↗
29
65L243870000
Clip
Loading…
↗
30
67H139720000
Pipe, fuel 2
Loading…
↗
32
65L412170000
Rod, accel. lever
Loading…
↗
33
9046404M1200
Clamp (6h3)
Loading…
↗
