225FETO (1997)
Fuel Injection Pump

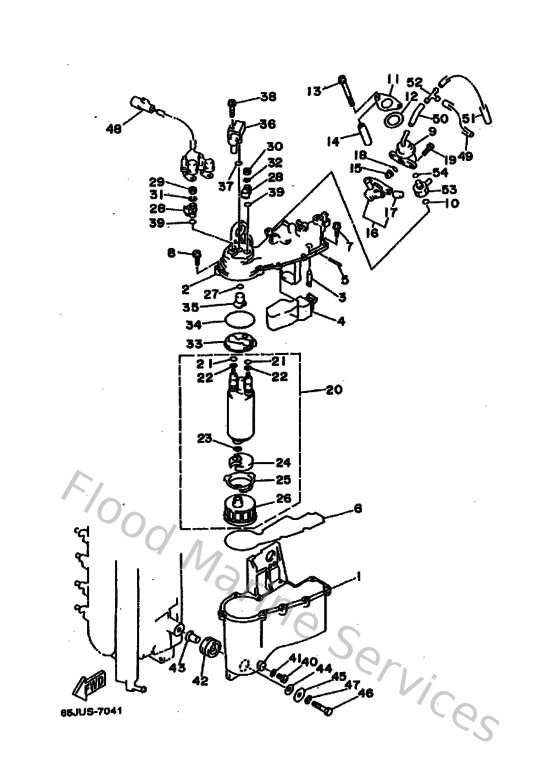

Diagram: Fuel Injection Pump
Parts List
Reference
Description
Price
1
65L149800000
Body, Float Chamber
Loading…
↗
3
65L145460000
Valve, needle
Loading…
↗
4
65L149850000
Float
Loading…
↗
5
65L145480000
Pin, Float Arm
Loading…
↗
6
65L149840000
Gasket, float chamber
Loading…
↗
7
65L141250000
Screw
Loading…
↗
9
65L139060000
Regulator, Pressure
Loading…
↗
10
65L244790000
O-Ring, Separator 1
Loading…
↗
15
65L139050000
Filter comp
Loading…
↗
17
65L149660000
Cap
Loading…
↗
18
65L244860000
O-ring
Loading…
↗
20
65L139070000
Fuel pump comp.
Loading…
↗
21
65L142270000
Washer
Loading…
↗
22
65L141940000
Washer
Loading…
↗
23
65L141590000
Clip
Loading…
↗
26
65L139150000
Filter
Loading…
↗
27
65L1416A0000
O-ring
Loading…
↗
28
65L142710000
Insulator
Loading…
↗
29
65L8182A0000
Nut
Loading…
↗
30
65L8182K0000
Nut
Loading…
↗
31
65L8182E0000
Washer
Loading…
↗
32
65L8182F0000
Washer
Loading…
↗
33
65L138430000
Plate 1
Loading…
↗
34
65L141470000
O-ring
Loading…
↗
35
65L142740000
Connector
Loading…
↗
38
65L244440000
Screw
Loading…
↗
39
65L143970000
O-ring
Loading…
↗
40
65L149920000
Screw, drain
Loading…
↗
41
65L149970000
Seal
Loading…
↗
42
65L243750000
Grommet
Loading…
↗
43
65L243970000
Collar
Loading…
↗
44
65L245760000
Washer
Loading…
↗
45
65L245790000
Washer 2
Loading…
↗
46
65L245920000
Bolt
Loading…
↗
47
65L241690000
Washer, lock
Loading…
↗
48
65L825070000
Wire, Lead
Loading…
↗
52
6E0243780000
Pipe, joint
Loading…
↗
53
65L243790000
Pipe, Joint 4
Loading…
↗
54
65L246480000
O-Ring
Loading…
↗
