Z175GETOL (2001)
Fuel Injection Pump

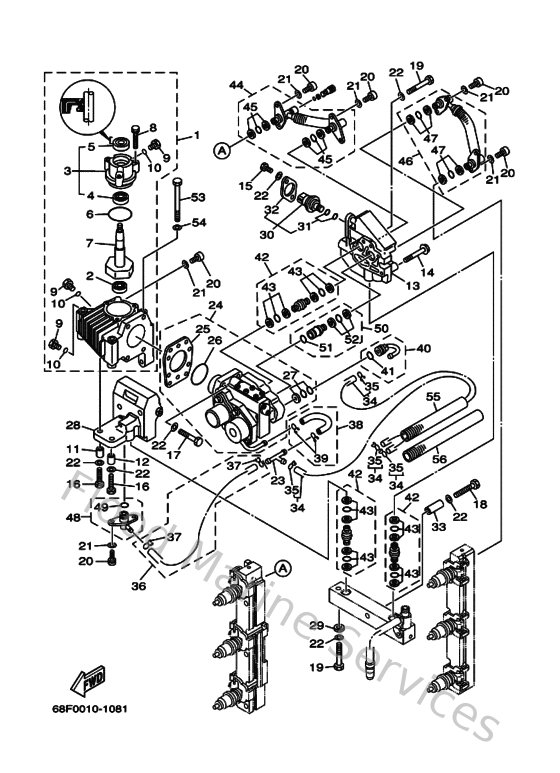

Diagram: Fuel Injection Pump
Parts List
Reference
Description
Price
1
68F121700100
Camshaft assembly 1
Loading…
↗
2
933060000100
Brg,r-b 6000 26mm 19g ky
Loading…
↗
3
68F121730000
Cap, camshaft 1
Loading…
↗
4
93306001U000
Bearing
Loading…
↗
5
68F122230000
Seal
Loading…
↗
6
68F124390000
O-ring
Loading…
↗
7
68F121710000
Camshaft 1
Loading…
↗
8
68F122280000
Bolt
Loading…
↗
9
68F134550000
Plug
Loading…
↗
10
68F134730000
O-ring
Loading…
↗
13
68F139930000
Cover
Loading…
↗
14
68F245920000
Bolt
Loading…
↗
15
68F135730000
Bolt 1
Loading…
↗
16
68F135740000
Bolt 2
Loading…
↗
17
68F241760000
Bolt 1
Loading…
↗
19
68F241780000
Bolt 3
Loading…
↗
20
68F245510000
Bolt, joint
Loading…
↗
21
68F245760000
Washer
Loading…
↗
22
68F245790000
Washer 2
Loading…
↗
23
688243780000
Pipe, joint
Loading…
↗
24
68F139100000
Fuel Pump assembly
Loading…
↗
25
60V140050000
Ring, seal
Loading…
↗
26
68F141260000
Gasket
Loading…
↗
27
68F139420000
Valve, Outlet
Loading…
↗
28
68F244700000
Fuel Regulator assembly
Loading…
↗
29
68F124430000
Stay
Loading…
↗
30
68F823800000
Sensor, pressure
Loading…
↗
31
68F823840000
Packing kit
Loading…
↗
32
68F823880000
Plate
Loading…
↗
34
68F243120000
Pipe 2
Loading…
↗
35
68F243560000
Clip, pipe 1
Loading…
↗
36
68F243130000
Pipe 3
Loading…
↗
38
68F243140000
Pipe 4
Loading…
↗
39
3TJ149374000
Clip
Loading…
↗
40
68F137580000
Pipe, Joint
Loading…
↗
41
68F244860000
O-ring
Loading…
↗
42
68F138150000
Joint 1
Loading…
↗
43
68F2466A0000
Packing kit
Loading…
↗
44
68F139730800
Pipe Fuel 3
Loading…
↗
46
68F139740000
Pipe Fuel 4
Loading…
↗
48
68F244740000
Cover
Loading…
↗
50
68F138161000
Joint 2
Loading…
↗
54
929030860000
Washer, plain (663)
Loading…
↗
55
9044624MF400
Hose (L350)
Loading…
↗
56
9044620MF500
Hose
Loading…
↗
