25DMH (2001)
Fuel Tank

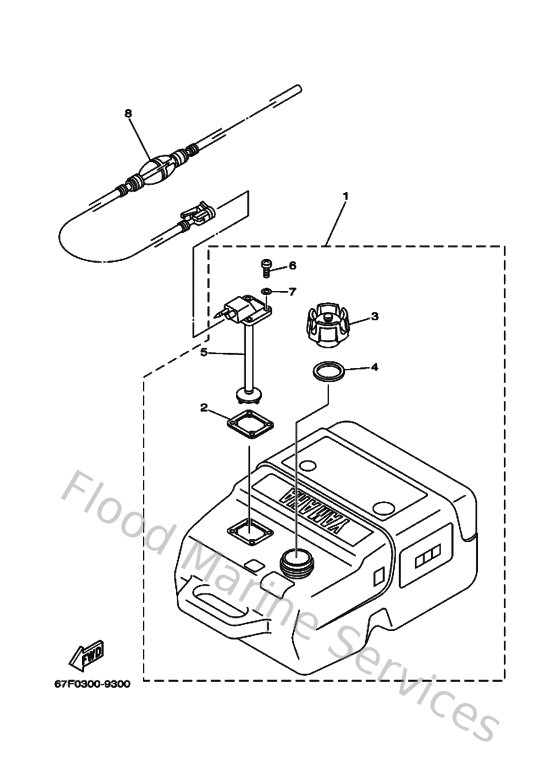

Diagram: Fuel Tank
Parts List
Reference
Description
Price
1
6YK242010100
Fuel Tank assembly (25L)
Loading…
↗
2
6YL242680100
Gasket, fuel meter
Loading…
↗
3
6YK246100000
Cap assembly
Loading…
↗
4
6YL246410000
Gasket, cap 1
Loading…
↗
5
6YK242600100
Fuel meter assembly
Loading…
↗
6
9015705M1600
Screw, pan head
Loading…
↗
7
6YL243290000
Seal
Loading…
↗
8
6YL243065200
Fuel pipe comp. 1
Loading…
↗
