8CMHSL (2001)
Fuel Tank

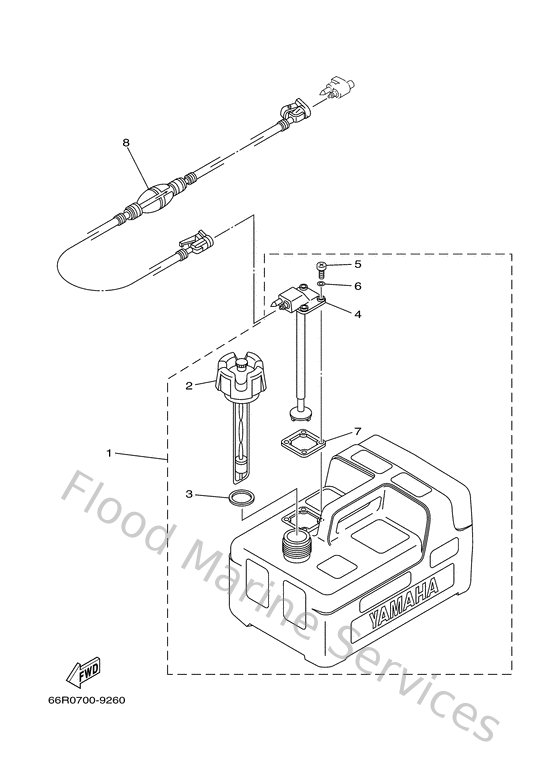

Diagram: Fuel Tank
Parts List
Reference
Description
Price
1
6YLW2420J300
Fuel tank assembly
Loading…
↗
2
6YLF46100000
Cap assembly
Loading…
↗
3
6YLF46410000
Gasket, cap 1
Loading…
↗
4
6YL242600100
Fuel meter assembly
Loading…
↗
5
901570581100
Screw, pan head
Loading…
↗
6
6YLF43290000
Seal
Loading…
↗
7
6YLF42680100
Gasket, fuel meter
Loading…
↗
8
6YL243065200
Fuel pipe comp. 1
Loading…
↗
