85AET (2000)
Fuel Tank 2

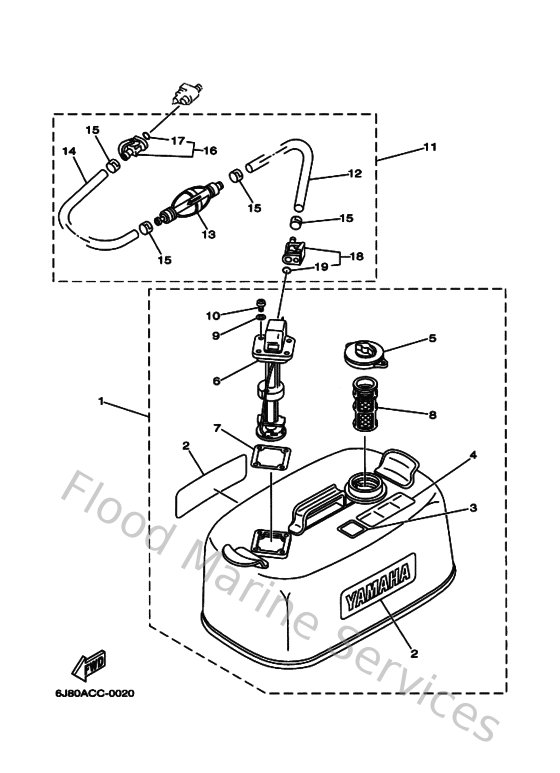

Diagram: Fuel Tank 2
Parts List
Reference
Description
Price
4
6Y1242580000
Graphic, Fuel Tank 11
Loading…
↗
5
6Y1246101200
Cap assembly
Loading…
↗
6
6Y1242601200
Fuel meter assembly
Loading…
↗
7
6Y1242680000
Gasket, fuel meter
Loading…
↗
8
6Y1241670000
Strainer
Loading…
↗
9
6Y1243290000
Seal
Loading…
↗
10
985860501600
Screw, pan head
Loading…
↗
11
6Y1243060600
Fuel Pipe Comp 1
Loading…
↗
12
9044511M8100
Hose (l3000)
Loading…
↗
13
6Y1243605100
Primer pump assembly
Loading…
↗
14
9044511M0500
Hose (l1000)
Loading…
↗
15
650243515100
Band 1
Loading…
↗
16
6G1243050500
Fuel pipe joint comp. 2
Loading…
↗
17
932100828700
O-ring (655)
Loading…
↗
18
6Y1243050200
Fuel pipe joint comp. 2
Loading…
↗
