ME750TIHL (2005)
GEAR SHAFT (HM130-2)

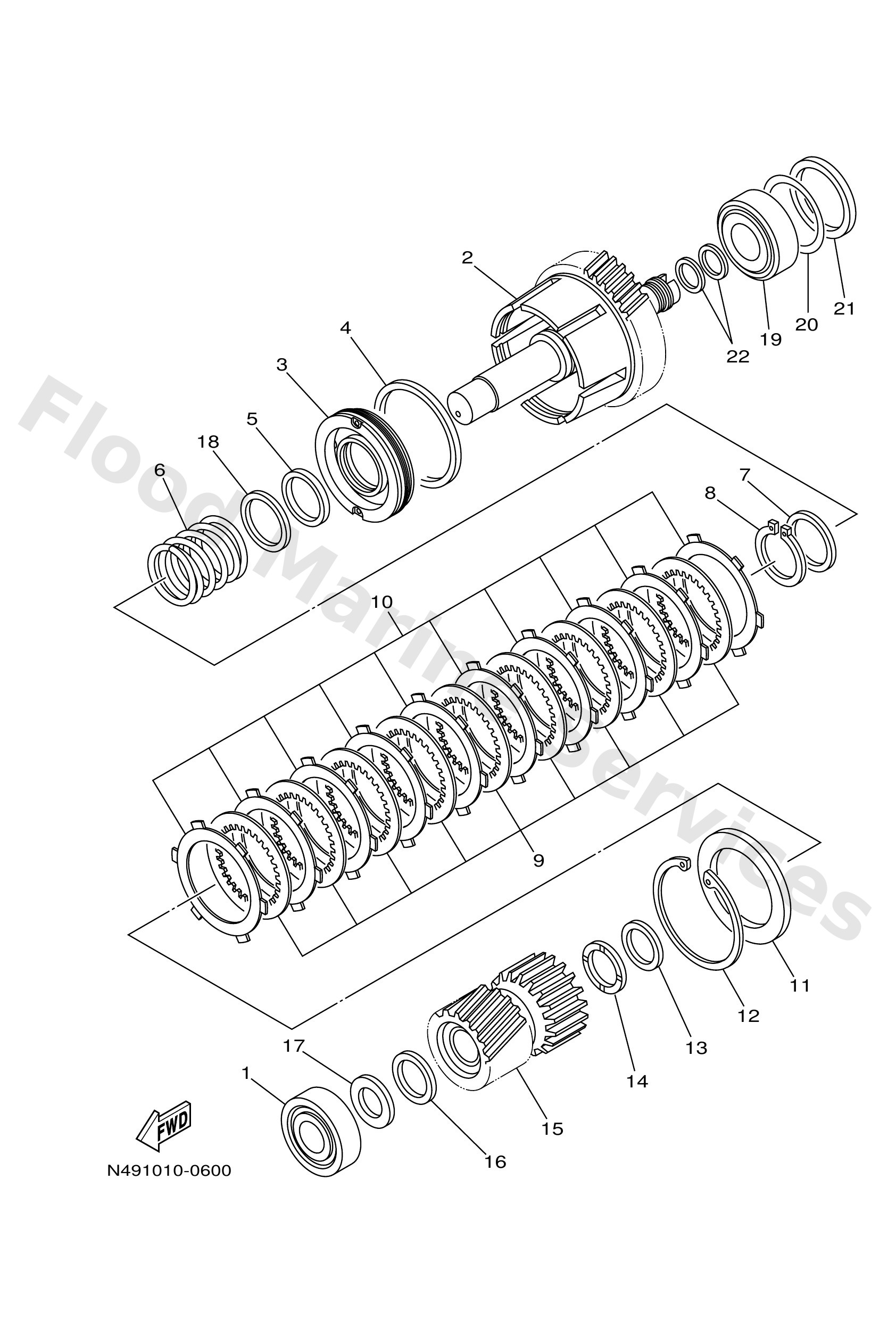

Diagram: GEAR SHAFT (HM130-2)
Parts List
Reference
Description
Price
1
21
-
Loading…
↗
1
9333200084
Bearing
Loading…
↗
2
N491728000
Gear Shaft assembly
Loading…
↗
3
N491631900
Piston,Clutch
Loading…
↗
3
22
-
Loading…
↗
4
N211639300
Ring,square 1
Loading…
↗
4
20
-
Loading…
↗
6
7
6Tc-41661-00
Loading…
↗
7
72M1705800
Washer,1
Loading…
↗
8
9900960400
Circlip
Loading…
↗
10
N301632100
Plate, Friction
Loading…
↗
11
72M1632900
Plate,back 1
Loading…
↗
11
19
-
Loading…
↗
12
9342135072
Circlip(72j)
Loading…
↗
13
N211705900
Washer,2
Loading…
↗
14
N411702800
Washer,Thrust 1
Loading…
↗
15
N411783000
UR R=3.45
Drive Gear assembly. (24T)
Loading…
↗
15
N411783040
UR R=1.55
Drive Gear assembly. (42T)
Loading…
↗
15
N411783030
UR R=1.97
Drive Gear assembly. (36T)
Loading…
↗
15
N411783020
UR R=2.45
Drive Gear assembly. (31T)
Loading…
↗
15
N411783010
UR R=2.96
Drive Gear assembly. (27T)
Loading…
↗
17
N211764800
Washer
Loading…
↗
18
N491705900
Washer,2
Loading…
↗
20
N411715800
Collar 1
Loading…
↗
22
N411722800
UN
Shim(T=0.1)
Loading…
↗
22
N411722810
UN
Shim(T=0.15)
Loading…
↗
22
N411722820
UN
Shim(T=0.2)
Loading…
↗
22
N411722830
UN
Shim(T=0.5)
Loading…
↗
