ME750TIH (2005)
GEAR SHAFT (MGNV123-6)

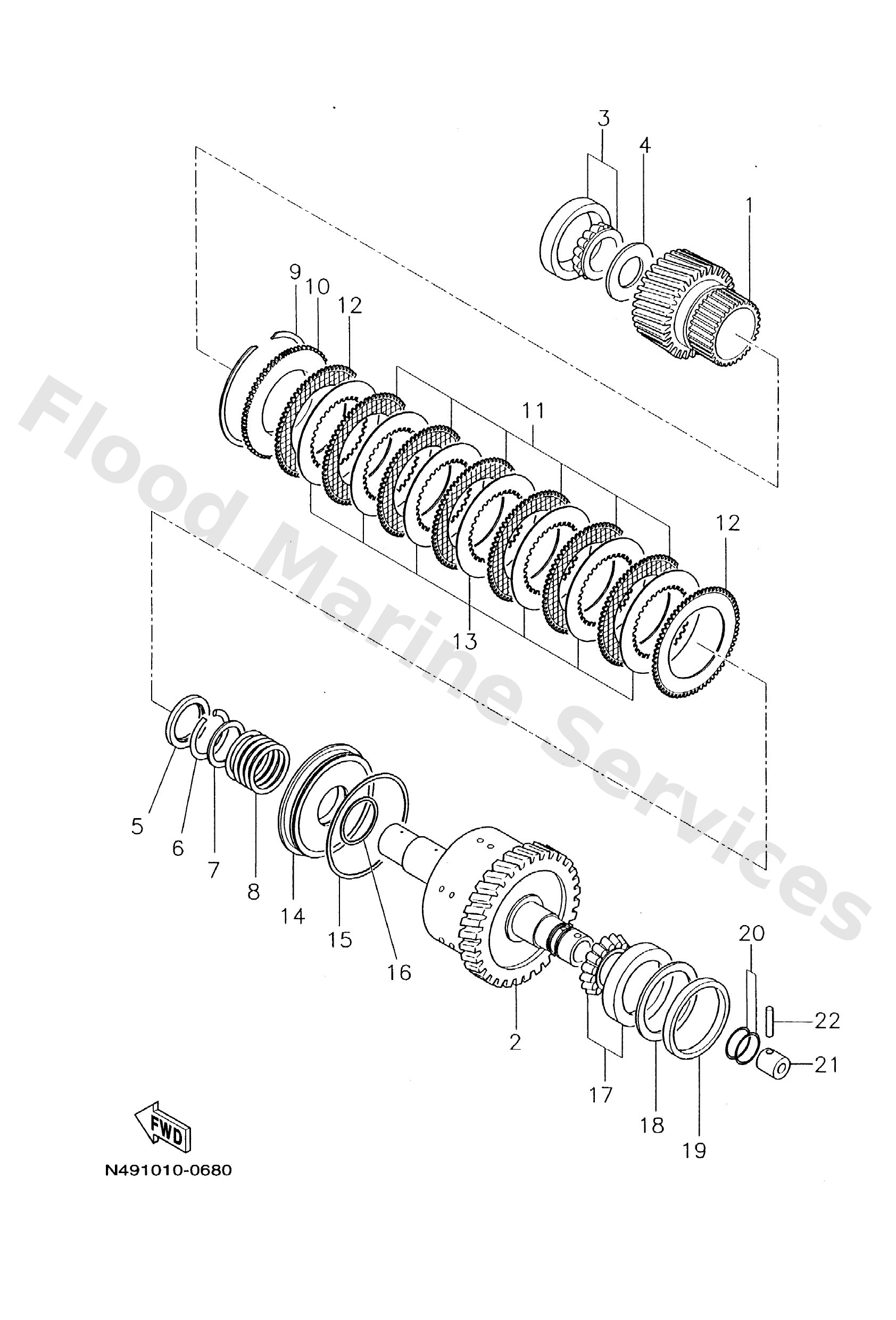

Diagram: GEAR SHAFT (MGNV123-6)
Parts List
Reference
Description
Price
1
N4917290C0
UR R=2.46
Drive Gear assembly (26T)
Loading…
↗
1
N4917290D0
UR R=2.03
Drive Gear assembly (38T)
Loading…
↗
1
N4917290E0
UR R=1.53
Drive Gear assembly (45T)
Loading…
↗
1
N4917290B0
UR R=2.96
Drive Gear assembly (23T)
Loading…
↗
2
N4945520B0
Drive Shaft assembly 2
Loading…
↗
3
N1517413N0
Brg 2
Loading…
↗
4
N4917419B0
Spacer, Main Axle
Loading…
↗
5
N4917645B0
Collar
Loading…
↗
6
N4917282C0
Ring, Round Section
Loading…
↗
7
N4916192B0
Washer
Loading…
↗
8
N1516333N0
Spring clutch 1
Loading…
↗
9
9345147060
Circlip (712)
Loading…
↗
10
N4916329B0
Cap, Rubber
Loading…
↗
11
N4916321B0
Plate, Friction
Loading…
↗
12
N4916331B0
Plate, Friction 2
Loading…
↗
13
N0216324N1
Plate, clutch 1
Loading…
↗
14
N4916319B0
Piston,Clutch
Loading…
↗
15
7121639300
Ring, square 1
Loading…
↗
16
N4916394B0
Ring,Square2
Loading…
↗
17
N1517166N0
Brg 2
Loading…
↗
18
N0217293N0
Shim
Loading…
↗
19
N4917158B0
Collar 1
Loading…
↗
20
N0218219N0
Ring, oil seal
Loading…
↗
21
N4913132B0
Joint
Loading…
↗
22
N1511498N0
Pin, joint
Loading…
↗
