115CETO (2002)
GENERATOR

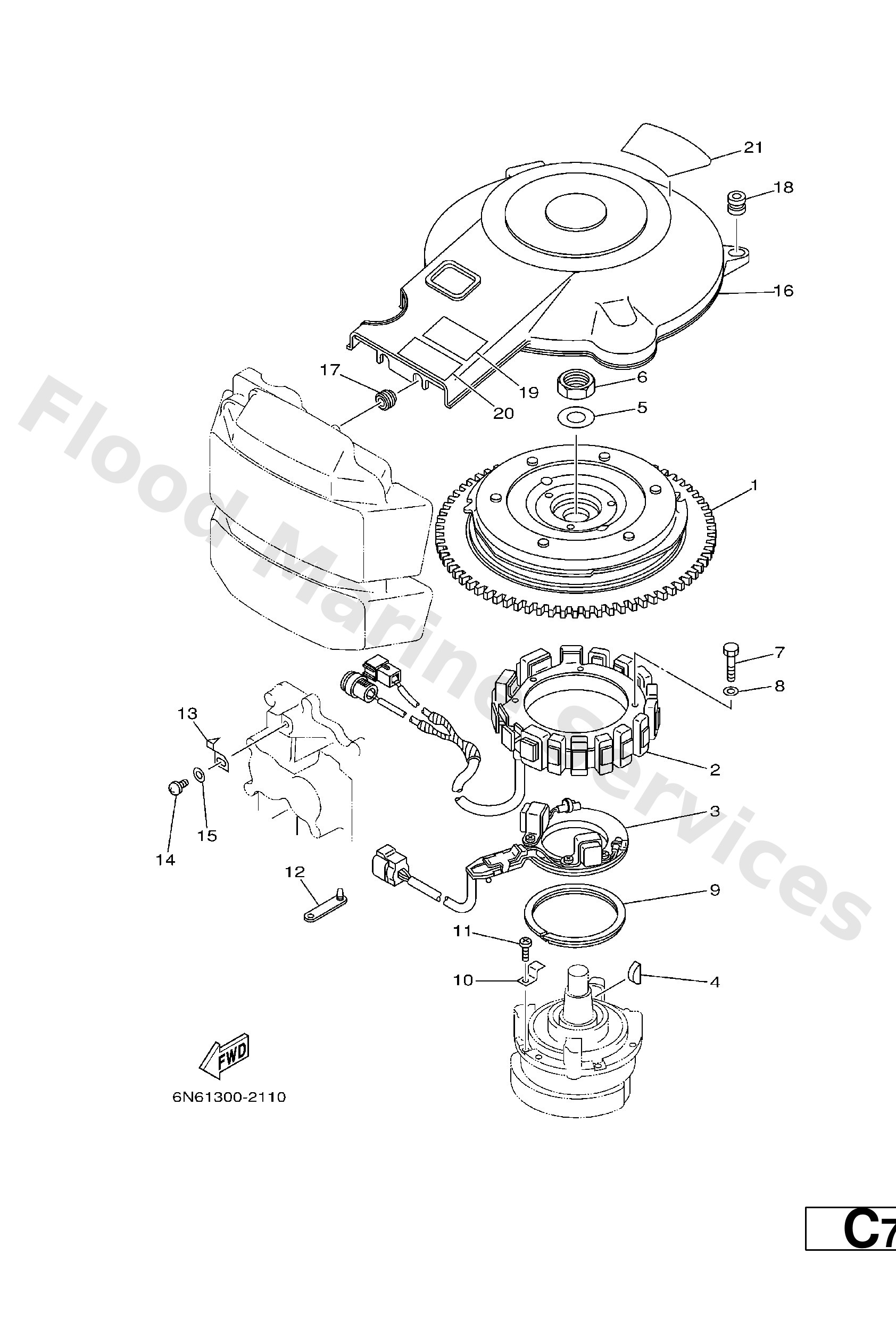

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6N78555000
Rotor assembly
Loading…
↗
2
6N78551000
Stator assembly
Loading…
↗
3
6E58558000
Coil, pulser
Loading…
↗
4
9028005015
Key, woodruff
Loading…
↗
5
9020121M18
Washer, plate (663)
Loading…
↗
6
9017020137
Nut, hexagon(663)
Loading…
↗
7
9701306065
Bolt(62j)
Loading…
↗
8
9290306600
Washer, plain (646)
Loading…
↗
9
6884161100
Retainer, magneto base 1
Loading…
↗
10
6884161200
Retainer, magneto base 2
Loading…
↗
11
9788006018
Screw, pan head(6e5)
Loading…
↗
12
9046412M00
Clamp
Loading…
↗
13
6E58133200
Plate, timing
Loading…
↗
14
9788506010
Screw pan head
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
16
6N78133700
Cover, flywheel
Loading…
↗
17
9048012M11
Grommet (6a0)
Loading…
↗
18
6638231701
Damper, ignition coil
Loading…
↗
19
6A18362551
Mark 5
Loading…
↗
20
6A18362541
Mark 5
Loading…
↗
21
6E51448800
Label, caution
