15FWC (2002)
GENERATOR

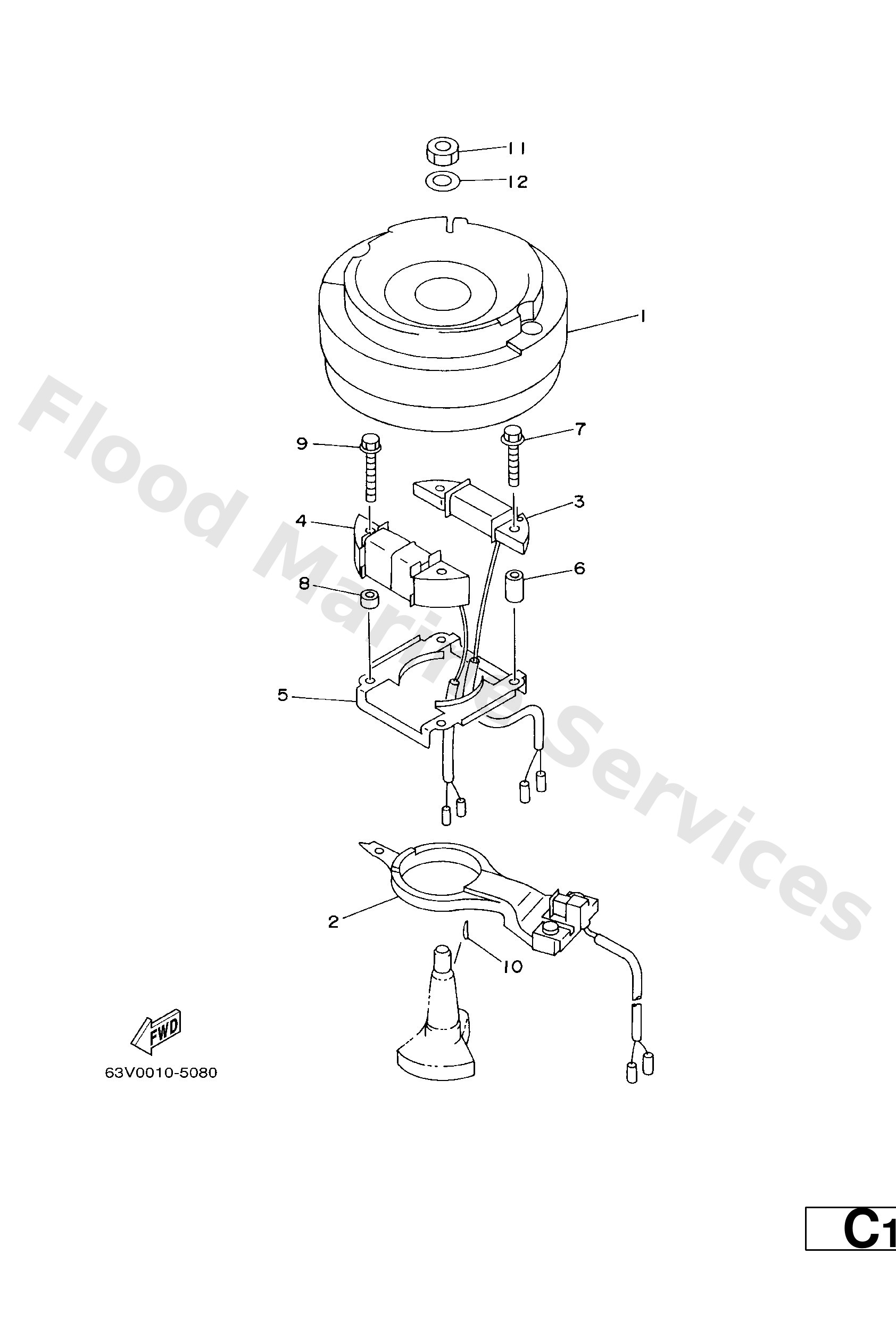

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
63V8555000
Rotor assembly
Loading…
↗
1
63V8555010
Rotor assembly
Loading…
↗
2
63V8558000
Coil, pulser
Loading…
↗
3
63V8552000
Coil, charge
Loading…
↗
4
63V--85533--00
Coil, lighting
Loading…
↗
5
63V--41611--00
Retainer, magneto base
Loading…
↗
6
90387--06M53
Collar (1m1)
Loading…
↗
7
90105--06M68
Bolt, washer based(63v)
Loading…
↗
8
90387--06M24
Collar(6r8)
Loading…
↗
9
90105--06M69
Bolt, washer based(63v)
Loading…
↗
10
90280--05013
Key, woodruff
Loading…
↗
11
90170--12066
Nut, hexagon 6481155500
Loading…
↗
12
90201--12472
Washer, plate (4n0)
Loading…
↗
