200GETO (2003)
GENERATOR

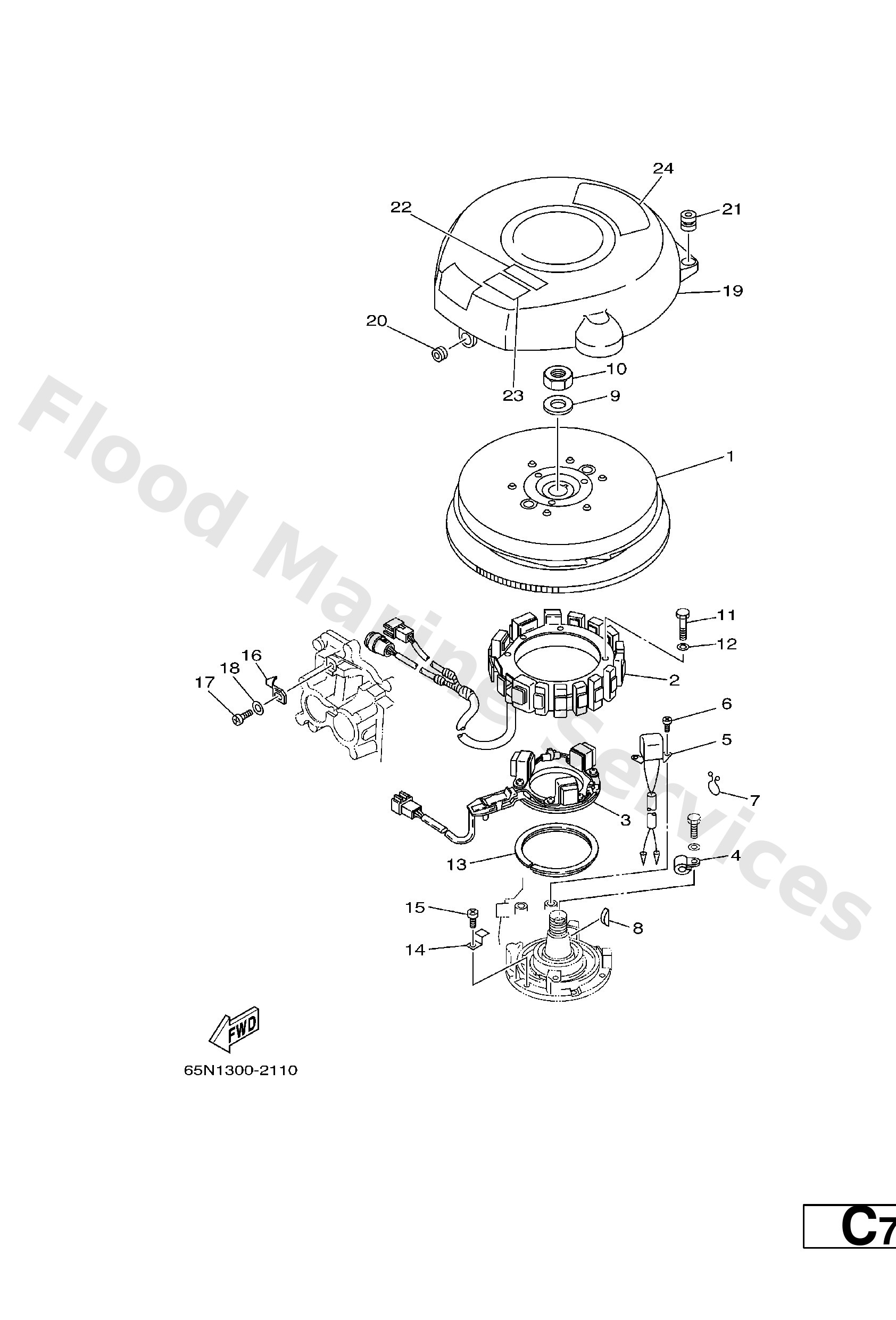

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
64D−85550−02
Rotor assembly
Loading…
↗
2
6R3−85510−00
Stator assembly
Loading…
↗
3
64D−85580−00
Coil, pulser
Loading…
↗
4
90465−06M86
Clamp
Loading…
↗
5
6R5−85895−01
Crank position sender
Loading…
↗
6
97885−05012
Screw,pan head (646)
Loading…
↗
7
90464−15M11
Clamp (3y2)
Loading…
↗
8
90280−05015
Key, woodruff
Loading…
↗
9
90201−21M18
Washer, plate (663)
Loading…
↗
10
90170−20137
Nut, hexagon(663)
Loading…
↗
11
97013−06070
Bolt(62j)
Loading…
↗
12
92903−06600
Washer, plain (646)
Loading…
↗
13
688−41611−00
Retainer, magneto base 1
Loading…
↗
14
688−41612−00
Retainer, magneto base 2
Loading…
↗
15
97880−06018
Screw, pan head(6e5)
Loading…
↗
16
6E5−81332−00
Plate, timing
Loading…
↗
17
97885−06010
Screw pan head
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
64D−81337−01
Cover, Flywheel
Loading…
↗
20
90480−13M24
Grommet (6e9)
Loading…
↗
21
663−82317−01
Damper, ignition coil
Loading…
↗
22
6A1−83625−51
Mark 5
Loading…
↗
23
6A1−83625−41
Mark 5
Loading…
↗
24
64E−14488−00
Label, caution
