20DWO (2007)
GENERATOR

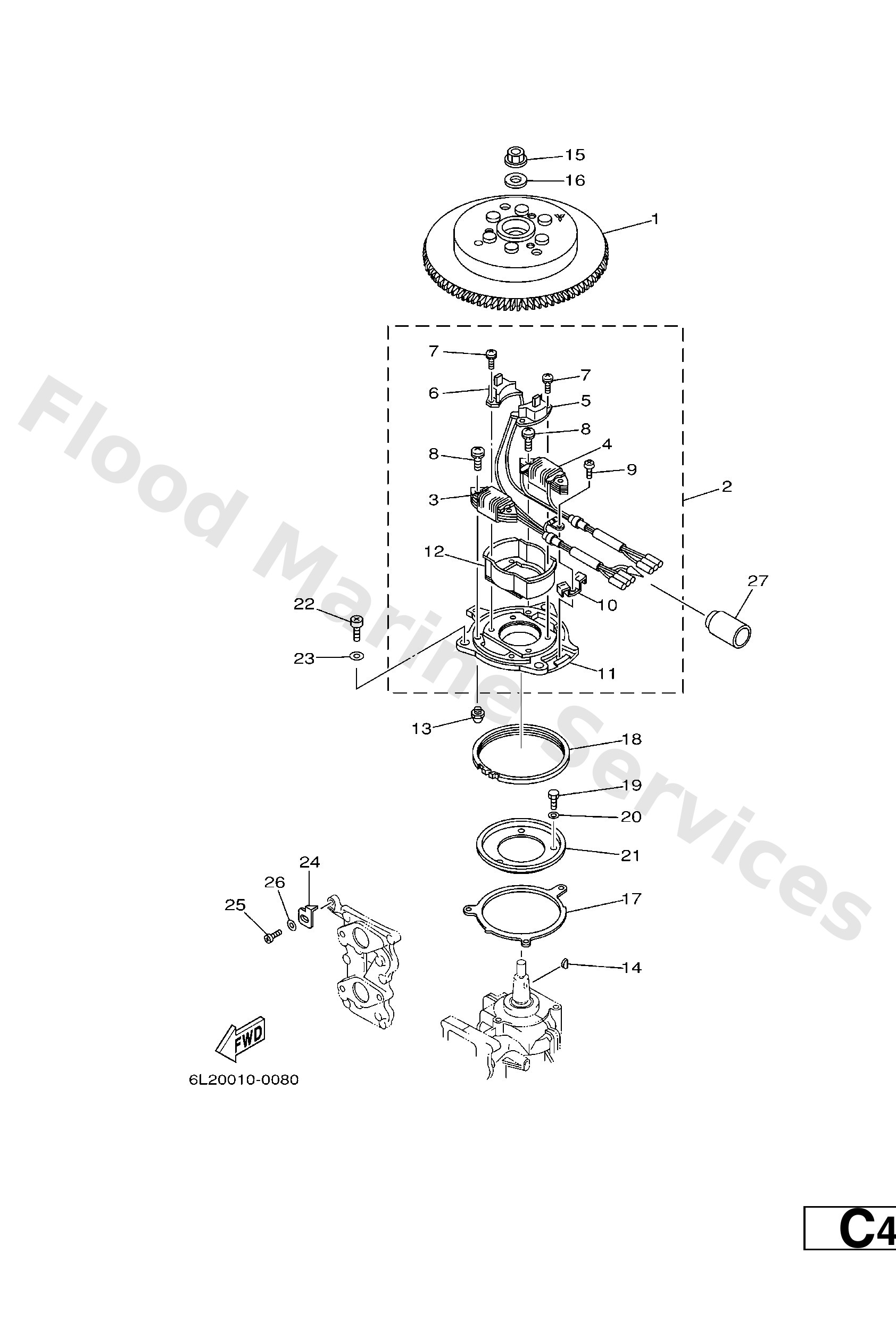

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6L28555010
Rotor assembly
Loading…
↗
1
6L28555000
Rotor assembly
Loading…
↗
2
6L28556010
Base assembly
Loading…
↗
3
6L28552012
Coil, charge
Loading…
↗
4
6L28553310
Coil, lighting
Loading…
↗
5
6L28558010
Coil, pulser
Loading…
↗
6
6L28558020
Coil, pulser
Loading…
↗
7
9760704110
Screw, pan head with washer (s
Loading…
↗
8
9760706125
Screw, pan head (76t)
Loading…
↗
9
9780204006
Screw, pan head(3xp)
Loading…
↗
10
6E98132870
Clamp
Loading…
↗
11
6L28556110
Base, magneto
Loading…
↗
12
61N8553700
Cover
Loading…
↗
13
6638551800
Joint, ball
Loading…
↗
14
9028005013
Key, woodruff
Loading…
↗
15
9017912M04
Nut, flange
Loading…
↗
16
9020113M42
Washer (694)
Loading…
↗
17
6G14161100
Retainer, magneto base 1
Loading…
↗
18
6954161300
Plate, base friction
Loading…
↗
19
9709506012
Bolt(gh1)
Loading…
↗
20
9299506600
Washer, plain (646)
Loading…
↗
21
6G14161200
Retainer, magneto base
Loading…
↗
22
9788505010
Screw, pan head(62x)
Loading…
↗
23
9299505600
Washer, plain (646)
Loading…
↗
24
6L28133200
Plate, timing
Loading…
↗
27
6L28259901
Cover, connecter
Loading…
↗
