225GETO (2002)
GENERATOR

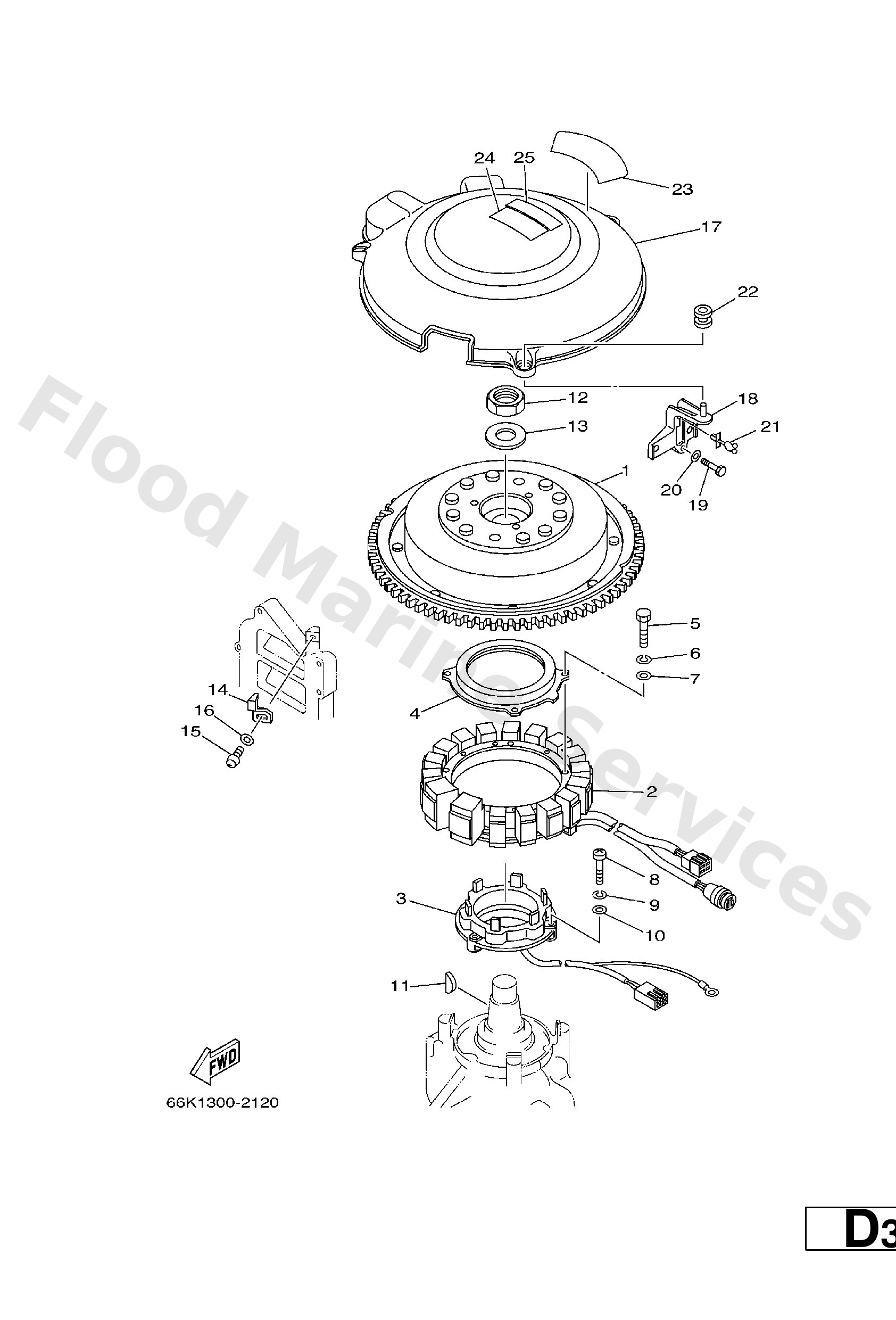

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
61A−85550−01
Rotor assembly
Loading…
↗
2
65L−85510−10
Stator assembly
Loading…
↗
3
61A−85580−01
Coil, pulser
Loading…
↗
4
61A−83721−00
Cover
Loading…
↗
5
97013−06035
Bolt(3rv)
Loading…
↗
6
92903−06100
Washer(6a1)
Loading…
↗
7
92903−06600
Washer, plain (646)
Loading…
↗
8
97885−05030
Ybs86-530 screw,panhead
Loading…
↗
9
92995−05100
Ybs67-5 washer, spring
Loading…
↗
10
92995−05600
Washer, plain (646)
Loading…
↗
11
90280−05015
Key, woodruff
Loading…
↗
12
90170−24M22
Nut(61a)
Loading…
↗
13
90201−25M02
Washer, plate(61a)
Loading…
↗
14
6E5−81332−00
Plate, timing
Loading…
↗
15
97885−06010
Screw pan head
Loading…
↗
16
92995−06600
Washer, plain (646)
Loading…
↗
17
61A−81337−01
Cover, flywheel
Loading…
↗
18
65L−81338−00−1S
Clamp, Lead
Loading…
↗
19
97013−06025
Bolt(62y)
Loading…
↗
21
90464−18M46
Clamp(65j)
Loading…
↗
22
663−82317−01
Damper, ignition coil
Loading…
↗
23
65L−14488−00
Label, Caution
Loading…
↗
24
6A1−83625−51
Mark 5
Loading…
↗
25
6A1−83625−41
Mark 5
Loading…
↗
