250GETO (2007)
GENERATOR

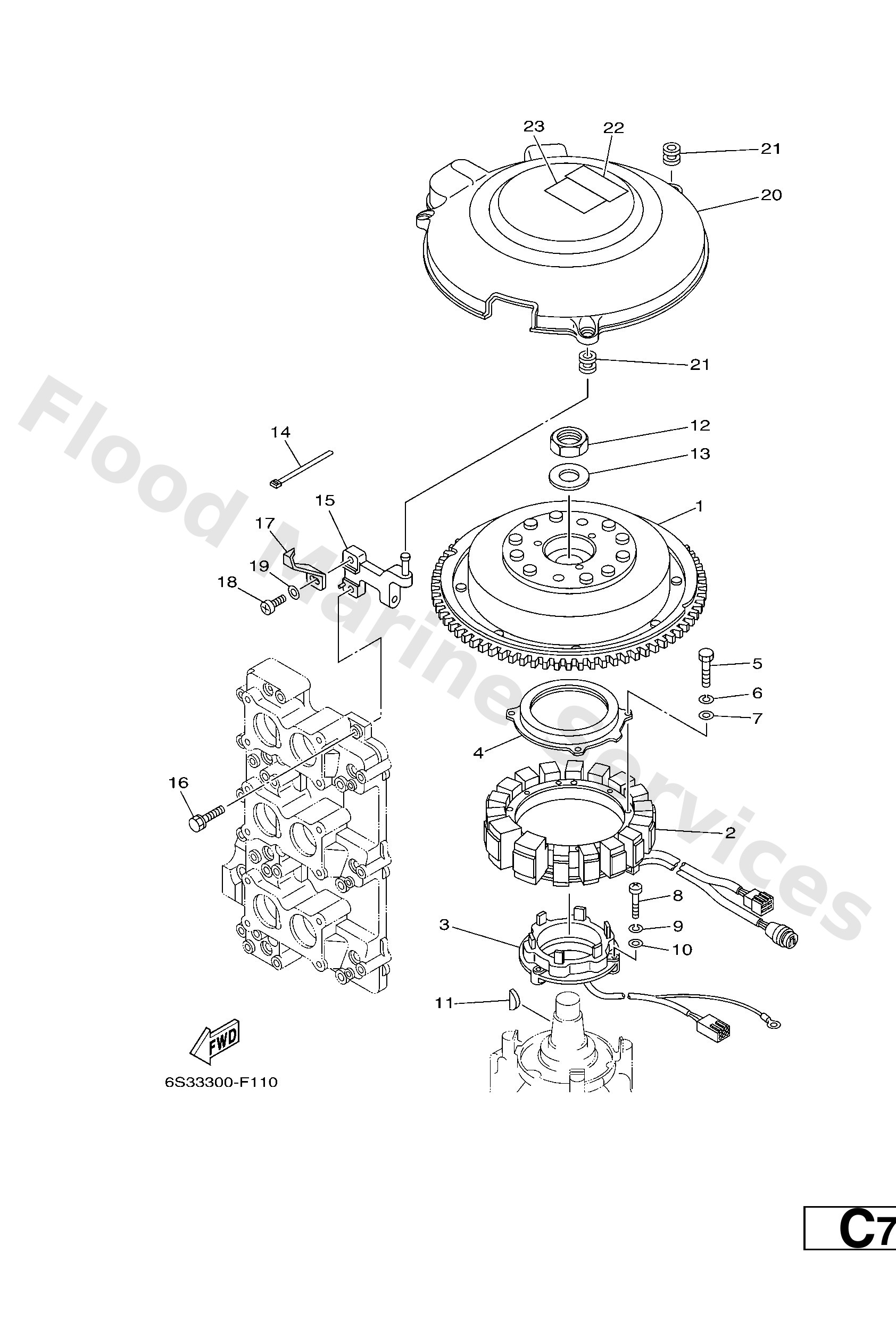

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
61A8555001
Rotor assembly
Loading…
↗
2
65L8551010
Stator assembly
Loading…
↗
3
61A8558001
Coil, pulser
Loading…
↗
4
61A8372100
Cover
Loading…
↗
5
9701306035
Bolt(3rv)
Loading…
↗
6
9290306100
Washer(6a1)
Loading…
↗
7
9290306600
Washer, plain (646)
Loading…
↗
8
9788505030
Ybs86-530 screw,panhead
Loading…
↗
9
9299505100
Ybs67-5 washer, spring
Loading…
↗
10
9299505600
Washer, plain (646)
Loading…
↗
11
9028005015
Key, woodruff
Loading…
↗
12
9017024M22
Nut(61a)
Loading…
↗
13
9020125M02
Washer, plate(61a)
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
6S38A87000
Stay assembly
Loading…
↗
16
9011906MA2
Bolt, with washer
Loading…
↗
17
6S38133200
Plate, timing
Loading…
↗
18
9788506010
Screw pan head
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
61A8133701
Cover, flywheel
Loading…
↗
21
6638231701
Damper, ignition coil
Loading…
↗
22
6A18362541
Mark 5
Loading…
↗
23
6A18362551
Mark 5
Loading…
↗
