25BMH (2005)
GENERATOR

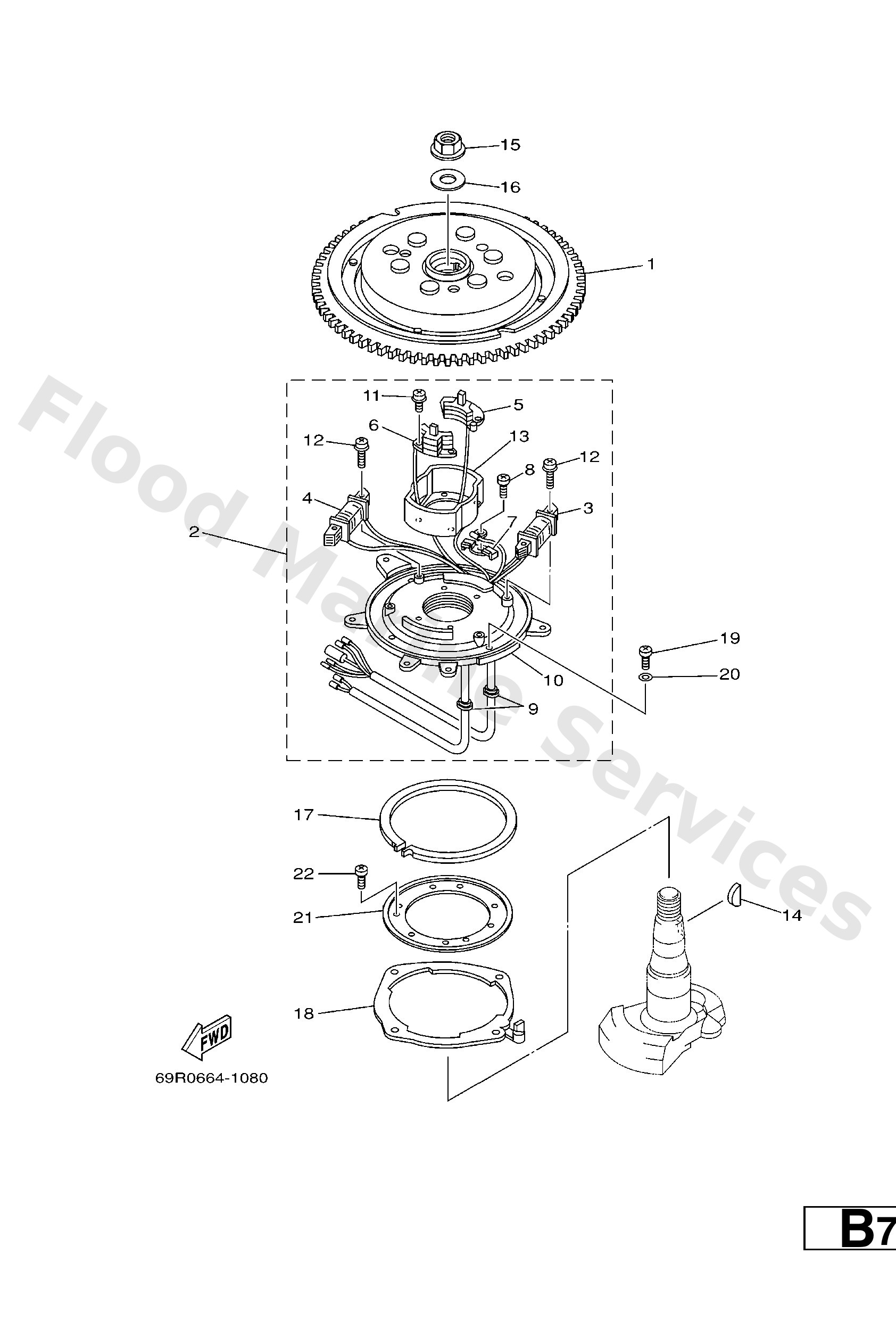

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
61T8555010
Rotor assembly
Loading…
↗
2
69P8556000
Base assembly
Loading…
↗
3
69P8554109
Coil, charge
Loading…
↗
4
61N8131309
Coil, lighting 1
Loading…
↗
5
61N8554309
Coil, pulser
Loading…
↗
6
61N8554319
Coil, pulser
Loading…
↗
7
6E98132870
Clamp
Loading…
↗
8
9780204006
Screw, pan head(3xp)
Loading…
↗
9
6E98551670
Grommet
Loading…
↗
10
69P8556100
Base, magneto
Loading…
↗
11
9760704112
Screw, pan head
Loading…
↗
12
9760706125
Screw, pan head (76t)
Loading…
↗
13
61N8553700
Cover
Loading…
↗
14
9028005015
Key, woodruff
Loading…
↗
15
9017916M05
Nut (689)
Loading…
↗
16
9020116M44
Washer (689)
Loading…
↗
17
6764161100
Retainer, magneto base 1
Loading…
↗
18
6764161300
Plate, base friction
Loading…
↗
19
9788005012
Screw,pan head (646)
Loading…
↗
20
9299005600
Washer, plain (646)
Loading…
↗
21
6894161201
Retainer, magneto base
Loading…
↗
22
9788006010
Screw pan head
Loading…
↗
