25BWC (2002)
GENERATOR

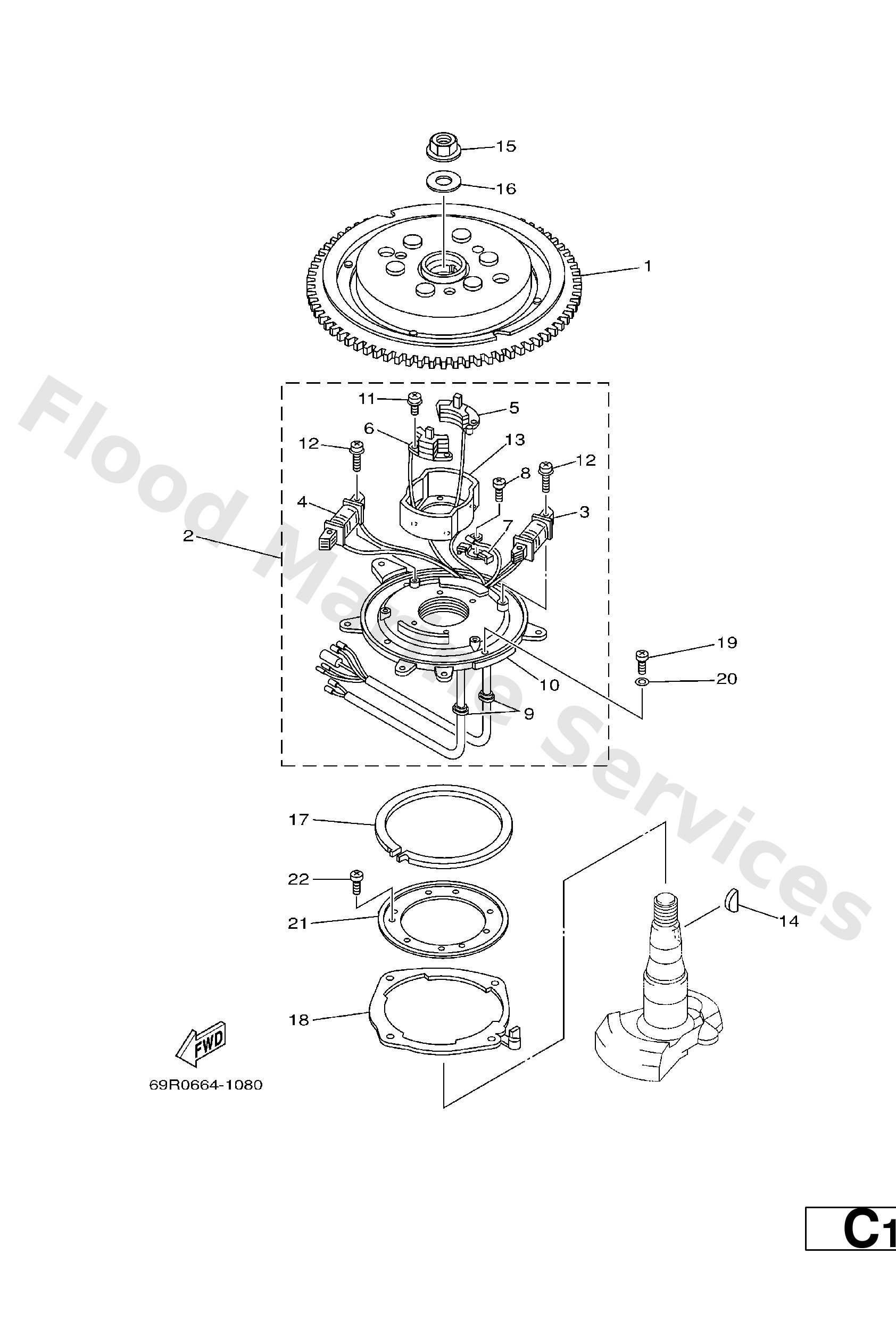

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
61N--85550--10
FOR VOLGA
Rotor assembly
Loading…
↗
1
61T--85550--10
”WC”−FOR VOLGA
Rotor assembly
Loading…
↗
2
69P--85560--00
Base assembly
Loading…
↗
3
69P--85541--09
Coil, charge
Loading…
↗
4
61N--81313--09
Coil, lighting 1
Loading…
↗
5
61N--85543--09
Coil, pulser
Loading…
↗
6
61N--85543--19
Coil, pulser
Loading…
↗
7
6E9--81328--70
Clamp
Loading…
↗
8
97802--04006
Screw, pan head(3xp)
Loading…
↗
9
6E9--85516--70
Grommet
Loading…
↗
10
69P--85561--00
Base, magneto
Loading…
↗
11
97607--04112
Screw, pan head
Loading…
↗
12
97607--06125
Screw, pan head (76t)
Loading…
↗
13
61N--85537--00
Cover
Loading…
↗
14
90280--05015
Key, woodruff
Loading…
↗
15
90179--16M05
Nut (689)
Loading…
↗
16
90201--16M44
Washer (689)
Loading…
↗
17
676--41611--00
Retainer, magneto base 1
Loading…
↗
18
676--41613--00
Plate, base friction
Loading…
↗
19
97880--05012
Screw,pan head (646)
Loading…
↗
20
92990--05600
Washer, plain (646)
Loading…
↗
21
689--41612--01
Retainer, magneto base
Loading…
↗
22
97880--06010
Screw pan head
Loading…
↗
