25MHB3 (2003)
GENERATOR

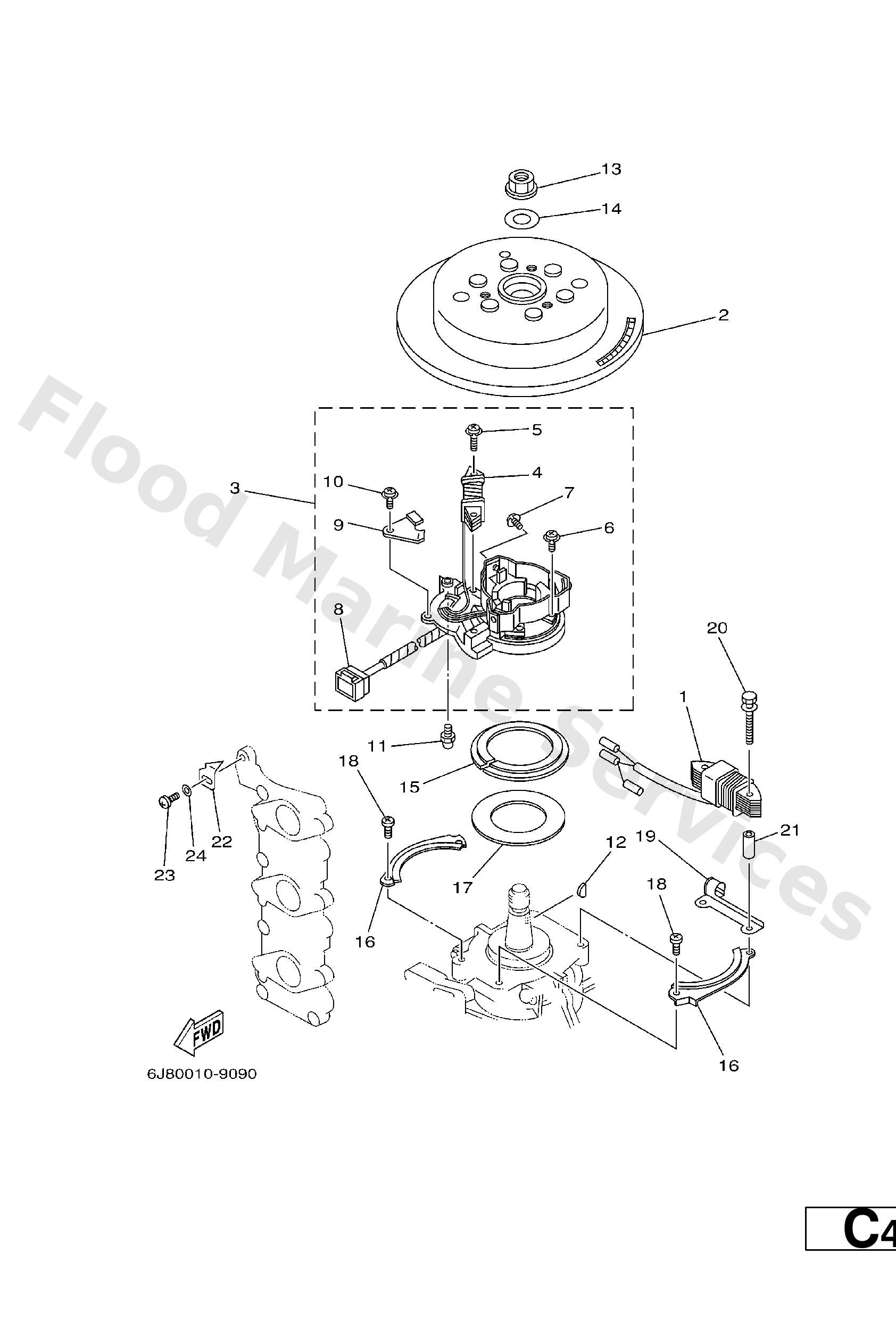

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6H4−85533−A1
Coil, lighting
Loading…
↗
2
6J8−85550−F1
MHO−FOR USA
Rotor assembly
Loading…
↗
2
6J8−85550−A1
Rotor assembly
Loading…
↗
3
6H4−85510−F1
Stator assembly
Loading…
↗
3
6J8−85510−A1
Stator assembly
Loading…
↗
4
6H4−85520−01
Coil, charge
Loading…
↗
4
6J8−85520−01
Coil, charge
Loading…
↗
5
97902−06120
Screw, with washer
Loading…
↗
6
97902−04112
Screw, with washer
Loading…
↗
7
97902−04106
Screw, with washer
Loading…
↗
8
9E471−09205
Housing,m-9-b 5pcs(61a)
Loading…
↗
9
6H4−85548−00
Clamp, cord
Loading…
↗
10
97902−05408
Screw, with washer
Loading…
↗
11
663−85518−00
Joint, ball
Loading…
↗
12
90280−05013
Key, woodruff
Loading…
↗
13
90179−16M05
Nut (689)
Loading…
↗
14
90201−16M44
Washer (689)
Loading…
↗
15
6H4−41611−10
Retainer, magneto base
Loading…
↗
16
6J8−41615−00
Stopper, magneto base
Loading…
↗
17
6J8−41618−00
Washer, magneto
Loading…
↗
18
97880−06012
Screw, pan head(62j)
Loading…
↗
19
6J8−85548−00
Holder
Loading…
↗
20
90101−06M00
Bolt(682)
Loading…
↗
21
90387−06M81
Collar
Loading…
↗
22
6J8−81332−00
Plate, timing
Loading…
↗
23
97885−05010
Screw, pan head(62x)
Loading…
↗
24
92995−05600
Washer, plain (646)
Loading…
↗
