2BMH (2002)
GENERATOR

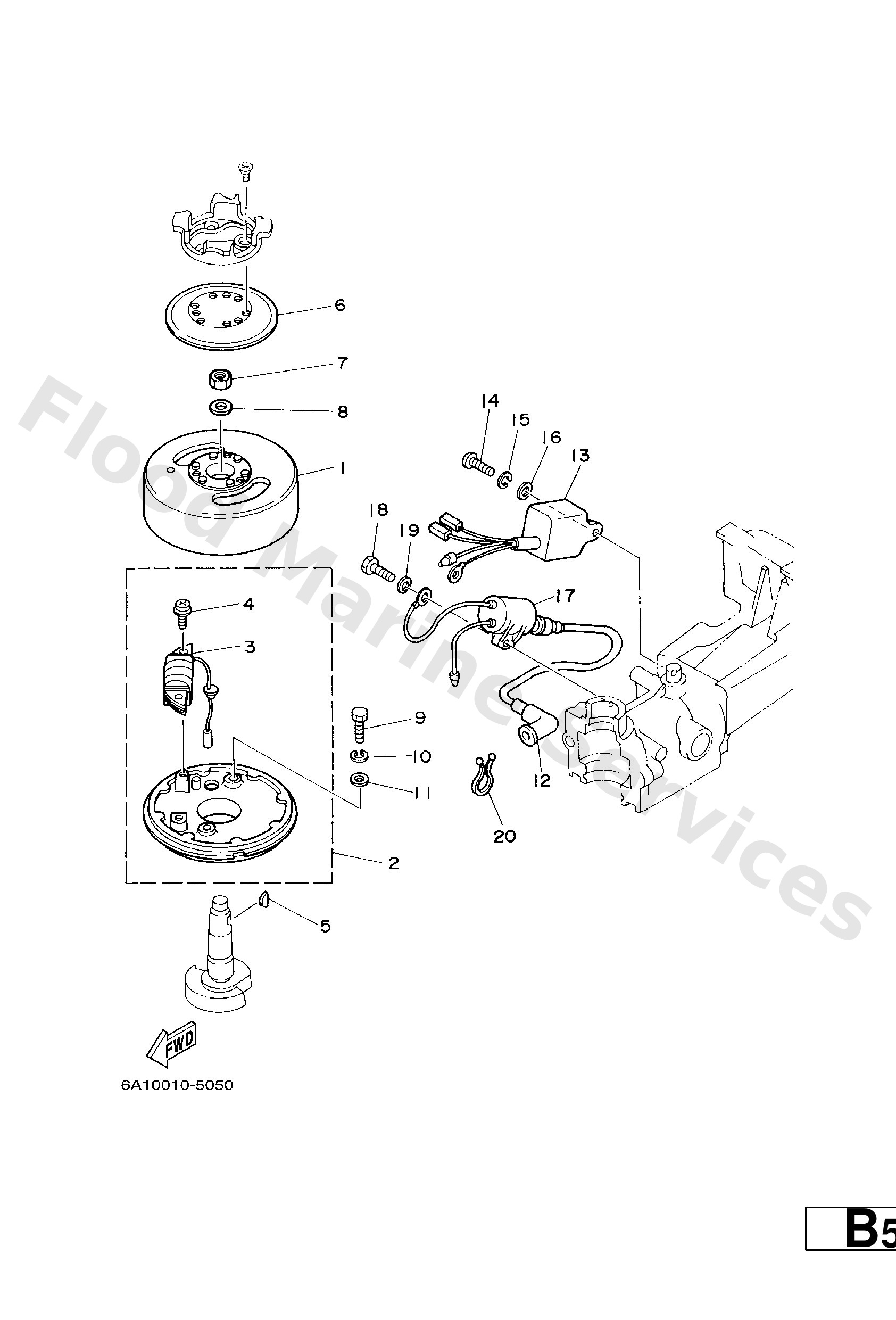

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6A18555000
Rotor assembly
Loading…
↗
2
6A18556000
Base assembly
Loading…
↗
3
6A18552000
Coil, charge
Loading…
↗
4
9788505020
Screw, pan head (e22)
Loading…
↗
5
90280--04M06
Key, woodruff(6a1)
Loading…
↗
6
6A18136200
Cover, hole 1
Loading…
↗
7
90170--10M33
Nut(6a1)
Loading…
↗
8
9290310100
Ybs67-10 washer, spring
Loading…
↗
9
97013--06030
Bolt
Loading…
↗
10
92903--06100
Washer(6a1)
Loading…
↗
11
92903--06600
Washer, plain (646)
Loading…
↗
12
6G1--82370--21
Plug cap assembly
Loading…
↗
13
6A18554001
C.d.i. unit assembly
Loading…
↗
14
97885--06016
Screw, pan head(6b0)
Loading…
↗
15
92995--06100
Washer(6a1)
Loading…
↗
16
92995--06600
Washer, plain (646)
Loading…
↗
17
6A18557000
Ignition coil assembly
Loading…
↗
18
97095--06020
Bolt(7u8)
Loading…
↗
20
90464--08M07
Clamp
Loading…
↗
