2BMH (2003)
GENERATOR

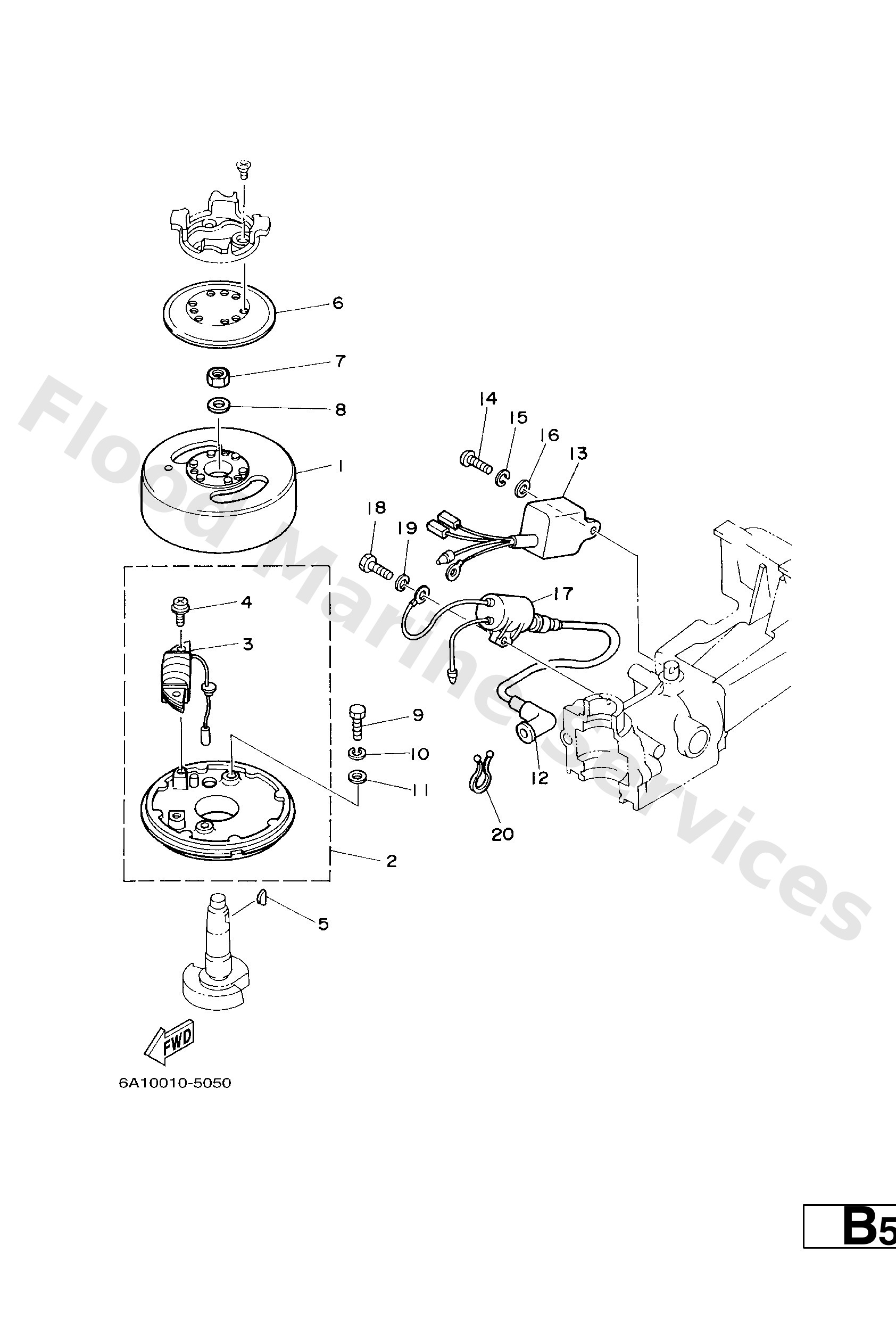

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6A1−85550−00
Rotor assembly
Loading…
↗
2
6A1−85560−00
Base assembly
Loading…
↗
3
6A1−85520−00
Coil, charge
Loading…
↗
4
97885−05020
Screw, pan head (e22)
Loading…
↗
5
90280−04M06
Key, woodruff(6a1)
Loading…
↗
6
6A1−81362−00
Cover, hole 1
Loading…
↗
7
90170−10M33
Nut(6a1)
Loading…
↗
8
92903−10100
Ybs67-10 washer, spring
Loading…
↗
9
97013−06030
Bolt
Loading…
↗
10
92903−06100
Washer(6a1)
Loading…
↗
11
92903−06600
Washer, plain (646)
Loading…
↗
12
6G1−82370−21
Plug cap assembly
Loading…
↗
13
6A1−85540−01
C.d.i. unit assembly
Loading…
↗
14
97885−06016
Screw, pan head(6b0)
Loading…
↗
15
92995−06100
Washer(6a1)
Loading…
↗
16
92995−06600
Washer, plain (646)
Loading…
↗
17
6A1−85570−00
Ignition coil assembly
Loading…
↗
18
97095−06020
Bolt(7u8)
Loading…
↗
20
90464−08M07
Clamp
Loading…
↗
