30DEO (2002)
GENERATOR

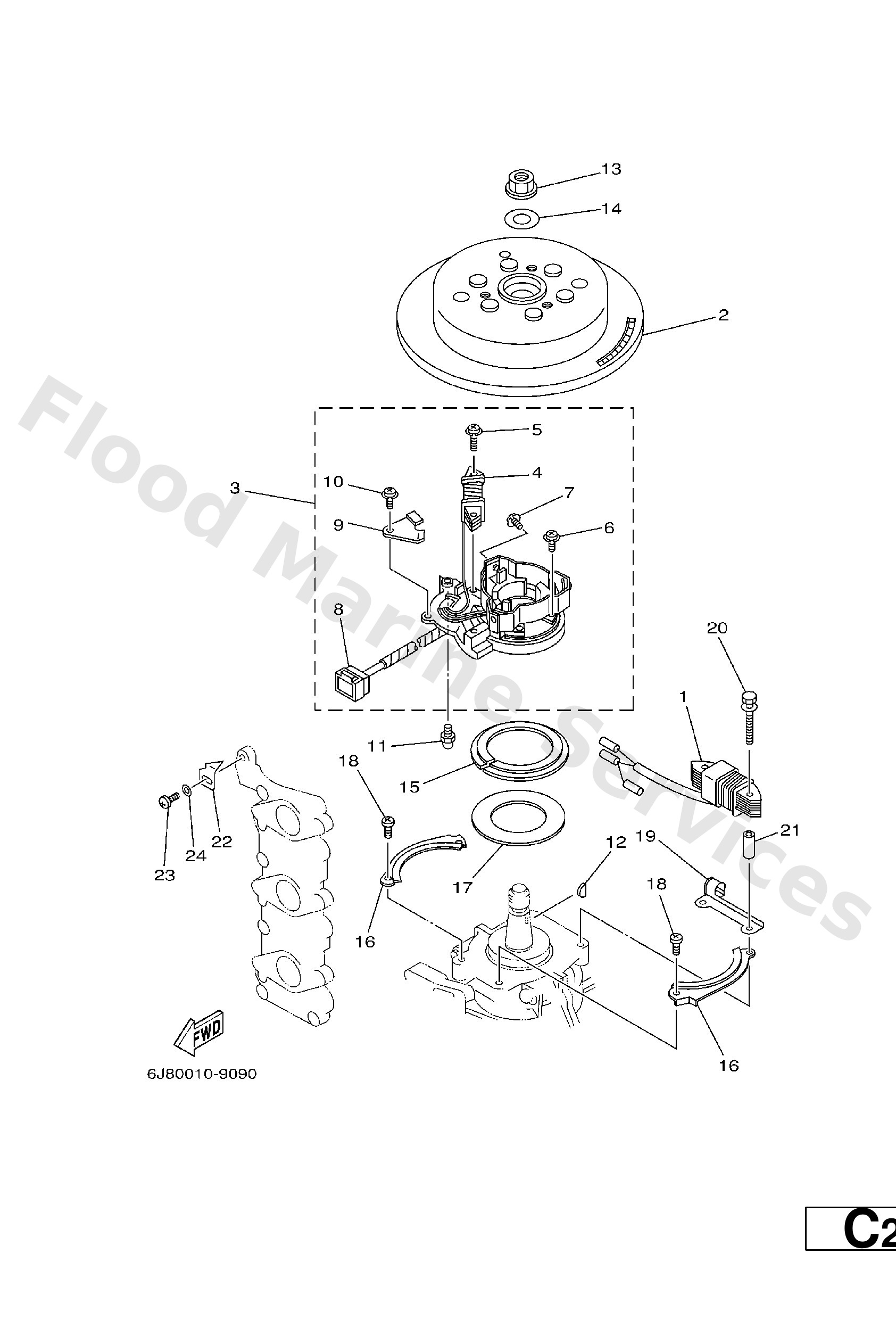

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6H485533A1
Coil, lighting
Loading…
↗
2
6J885550F1
Rotor assembly
Loading…
↗
2
6J885550A1
Rotor assembly
Loading…
↗
3
6H485510F1
Stator assembly
Loading…
↗
3
6J885510A1
Stator assembly
Loading…
↗
4
6H48552001
Coil, charge
Loading…
↗
4
6J88552001
Coil, charge
Loading…
↗
5
9790206120
Screw, with washer
Loading…
↗
6
9790204112
Screw, with washer
Loading…
↗
7
9790204106
Screw, with washer
Loading…
↗
8
9E47109205
Housing,m-9-b 5pcs(61a)
Loading…
↗
9
6H48554800
Clamp, cord
Loading…
↗
10
9790205408
Screw, with washer
Loading…
↗
11
6638551800
Joint, ball
Loading…
↗
12
9028005013
Key, woodruff
Loading…
↗
13
9017916M05
Nut (689)
Loading…
↗
14
9020116M44
Washer (689)
Loading…
↗
15
6H44161110
Retainer, magneto base
Loading…
↗
16
6J84161500
Stopper, magneto base
Loading…
↗
17
6J84161800
Washer, magneto
Loading…
↗
18
9788006012
Screw, pan head(62j)
Loading…
↗
19
6J88554800
Holder
Loading…
↗
20
9010106M00
Bolt(682)
Loading…
↗
21
9038706M81
Collar
Loading…
↗
22
6J88133200
Plate, timing
Loading…
↗
23
9788505010
Screw, pan head(62x)
Loading…
↗
24
9299505600
Washer, plain (646)
Loading…
↗
