30DMHO (1999)
GENERATOR

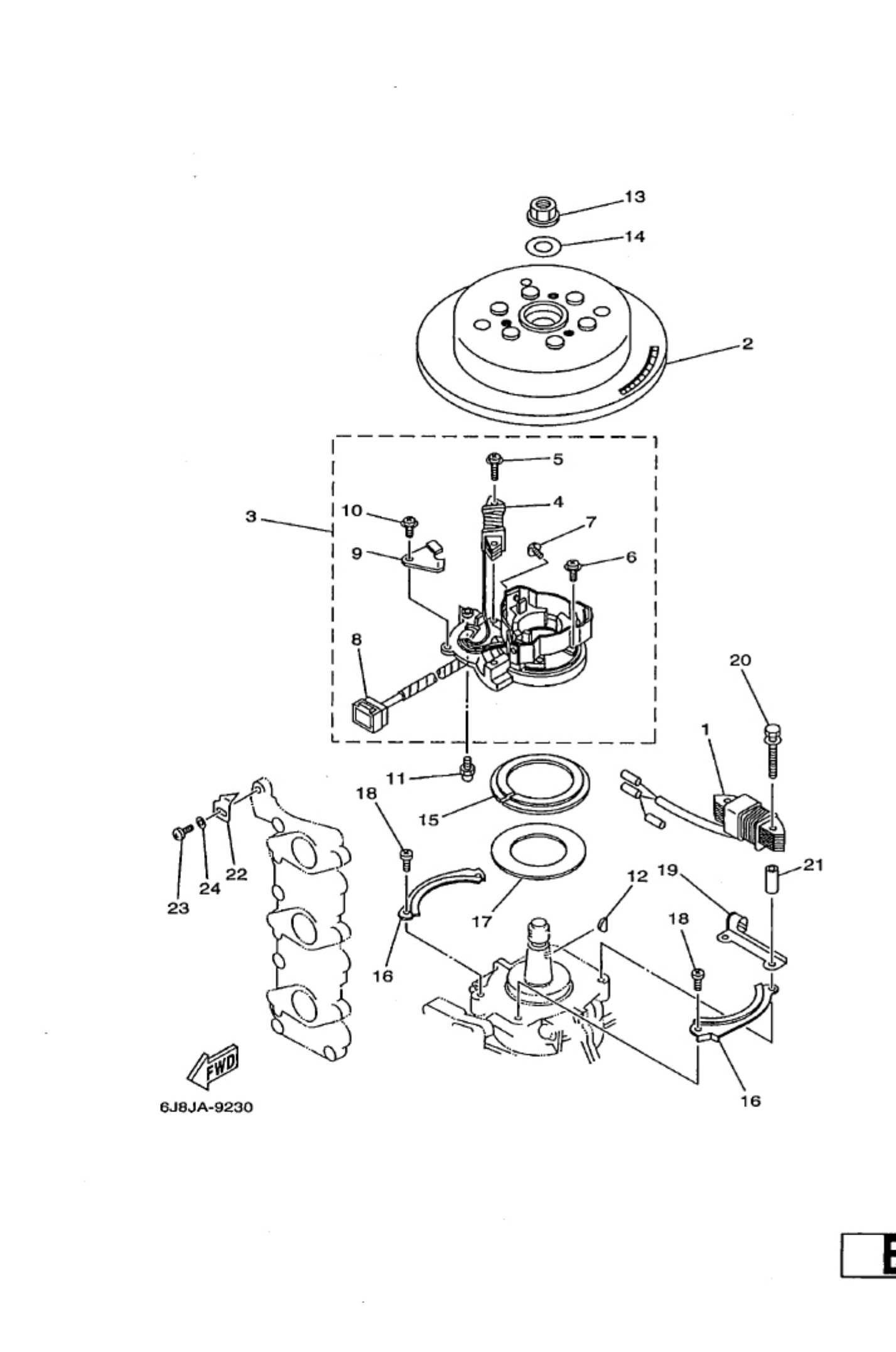

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6H485533A1
Coil, lighting
Loading…
↗
2
6J885550F1
UR
Rotor assembly
Loading…
↗
2
6J885550A1
UR
Rotor assembly
Loading…
↗
3
6H485510F1
UR
Stator assembly
Loading…
↗
3
6J885510A1
UR
Stator assembly
Loading…
↗
4
6H48552001
UR
Coil, charge
Loading…
↗
4
6J88552001
UR
Coil, charge
Loading…
↗
5
9790206120
2| 222
Screw, with washer
Loading…
↗
6
9790204112
6| 6| 6 6
Screw, with washer
Loading…
↗
7
9790204106
Screw, with washer
Loading…
↗
8
9E47109205
Housing,m-9-b 5pcs(61a)
Loading…
↗
9
BH48554800
Holder
Loading…
↗
10
9790205408
[IEIRIE
Screw, with washer
Loading…
↗
11
8638551800
Joint, Ball
Loading…
↗
12
9028005013
1p
Key, woodruff
Loading…
↗
14
9020116Md4
LRIRIR!
Washer, Plate
Loading…
↗
15
6H44161110
lRIRIR!
Retainer, magneto base
Loading…
↗
16
6J84161500
2| 2| 2| 2
Stopper, magneto base
Loading…
↗
17
6J84161800
11] 1] 1
Washer, magneto
Loading…
↗
17
0788006012
2|
Loading…
↗
17
6J88554800
Holder
Loading…
↗
20
9010108M00
Bolt, with washer(697)
Loading…
↗
21
9038706M81
Collar
Loading…
↗
21
68-81332-00
PLATE, TIMING
Loading…
↗
24
9299505600
11] 11
Washer, plain (646)
Loading…
↗
