Yamaha Outboard Parts - GENERATOR - 3AMH (2002) | Flood Marine

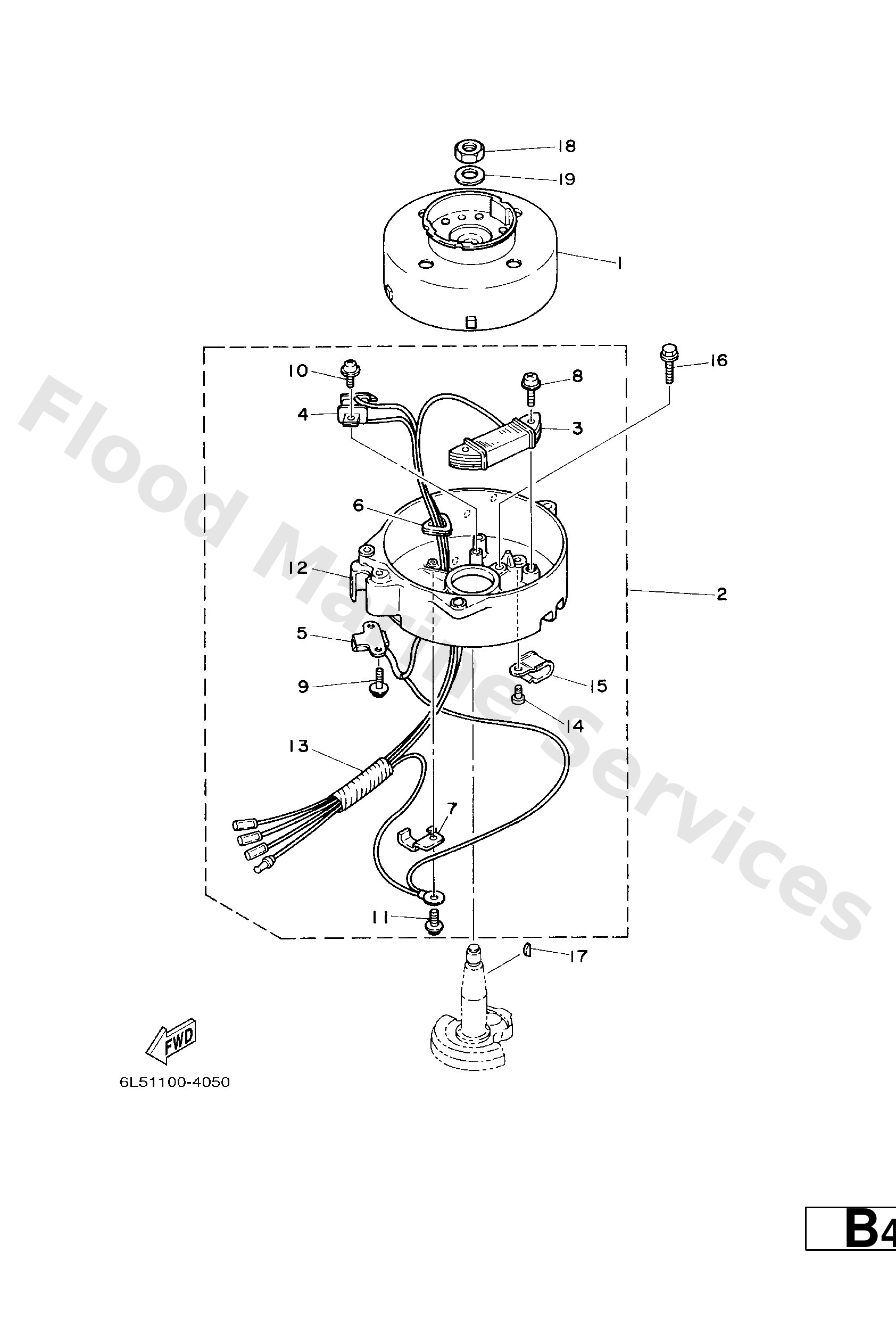

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6L5−85550−M0
Rotor assembly
Loading…

↗
2
6L5−85560−M1
Base assembly
Loading…

↗
3
6E0−85520−70
Charge coil ass'y
Loading…

↗
4
6L5−85595−M0
Coil, pulser
Loading…

↗
5
6L5−85592−M0
Pulser coil assembly
Loading…

↗
6
6E0−81336−70
Grommet
Loading…

↗
7
6E0−81328−70
Clamp
Loading…

↗
8
90159−05038
Screw, With Washer
Loading…

↗
9
90159−05037
Screw,w/washer
Loading…

↗
10
90159−04036
Screw, pan head(6g8)
Loading…

↗
11
90159−04035
Screw panhead (695)
Loading…

↗
12
6L5−15771−01−94
Stay 1
Loading…

↗
13
90446−10M01
Tube (6e5)
Loading…

↗
14
97803−05008
Screw, pan head (7g3)
Loading…

↗
15
90465−10M34
Clamp(6l5)
Loading…

↗
16
95895−06016
Bolt, flange deep recess
Loading…

↗
17
90280−04M06
Key, woodruff(6a1)
Loading…

↗
18
90170−10113
Nut, crank shaft (650)
Loading…

↗
19
90201−10126
Washer, plate (26h)
Loading…

↗
