3AMH (2005)
GENERATOR

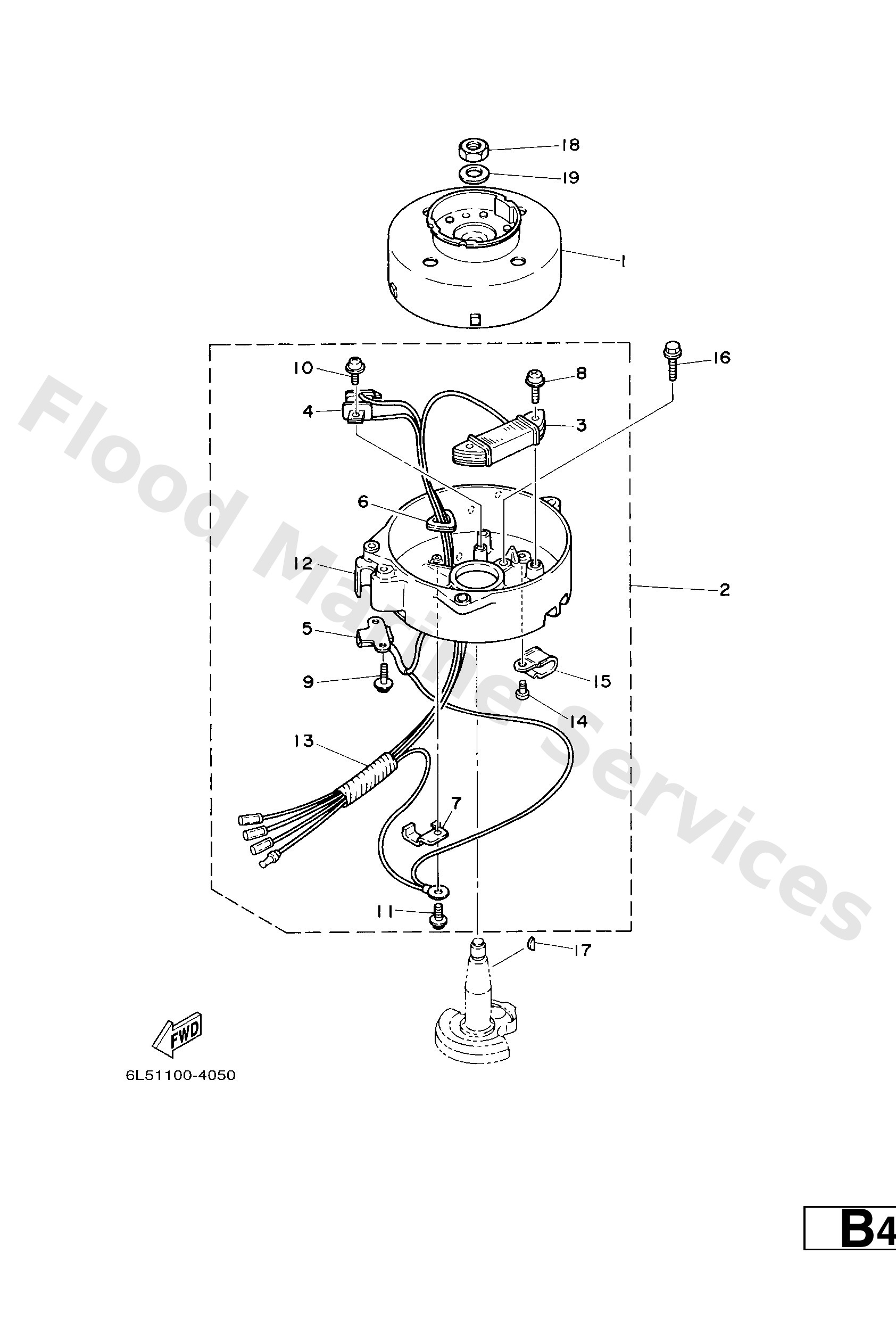

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6L585550M0
Rotor assembly
Loading…
↗
2
6L585560M1
Base assembly
Loading…
↗
3
6E08552070
Charge coil ass'y
Loading…
↗
4
6L585595M0
Coil, pulser
Loading…
↗
5
6L585592M0
Pulser coil assembly
Loading…
↗
6
6E08133670
Grommet
Loading…
↗
7
6E08132870
Clamp
Loading…
↗
8
9015905038
-
Loading…
↗
9
9015905037
Screw,w/washer
Loading…
↗
10
9015904036
Screw, pan head(6g8)
Loading…
↗
11
9015904035
Screw panhead (695)
Loading…
↗
12
6L5157710194
Stay 1
Loading…
↗
13
9044610M01
Tube (6e5)
Loading…
↗
14
9780305008
Screw, pan head (7g3)
Loading…
↗
15
9046510M34
Clamp(6l5)
Loading…
↗
16
9589506016
Bolt, flange deep recess
Loading…
↗
17
9028004M06
Key, woodruff(6a1)
Loading…
↗
18
9017010113
Nut, crank shaft (650)
Loading…
↗
19
9020110126
Washer, plate (26h)
Loading…
↗
