40XMH (2007)
GENERATOR

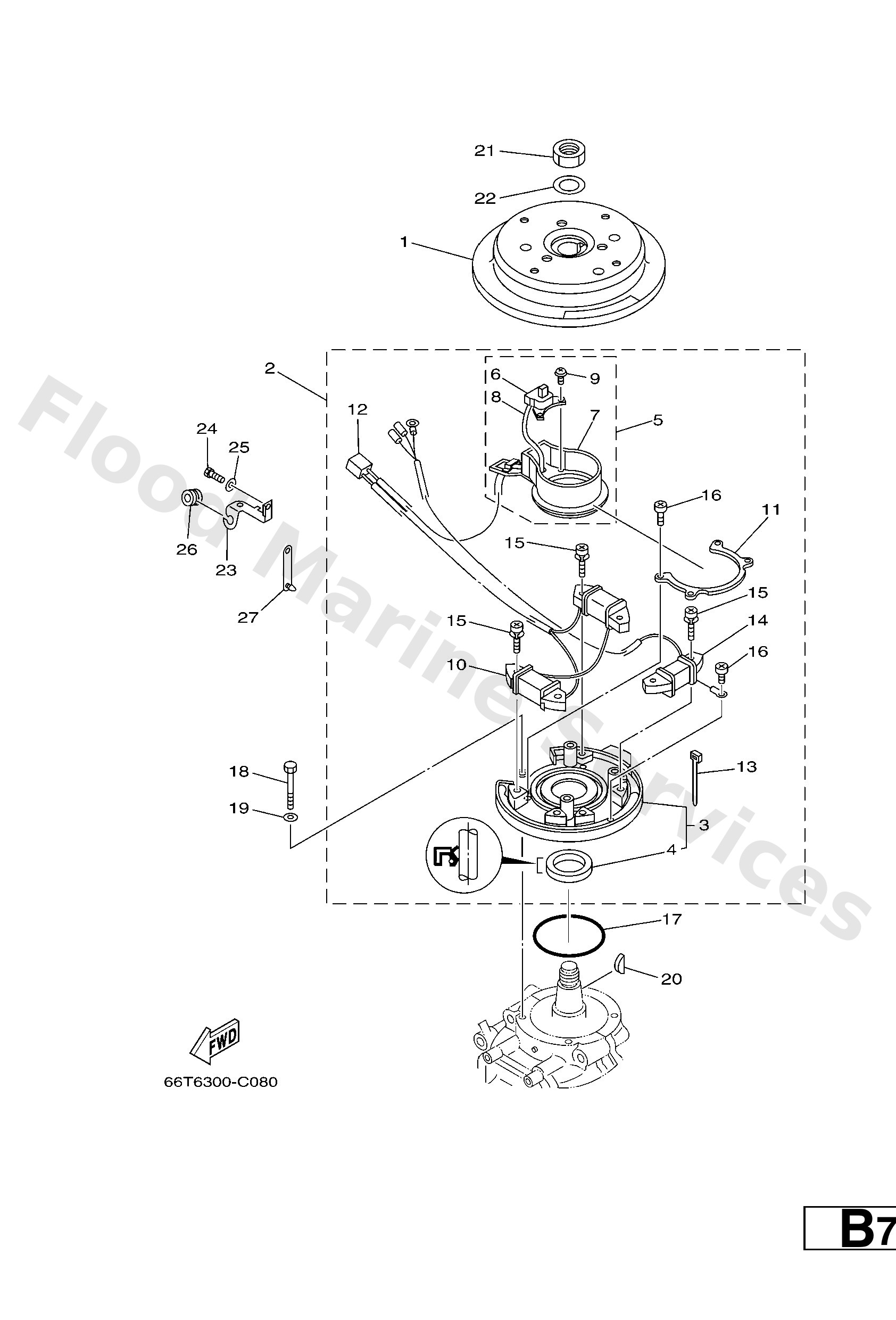

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
66T8555010
Rotor assembly
Loading…
↗
2
66T8556001
Base assembly
Loading…
↗
3
66T8556100
Base, magneto
Loading…
↗
4
9310235008
Oil seal
Loading…
↗
5
66T8558000
Pulser coil assembly
Loading…
↗
6
66T8559600
Coil, pulser 1
Loading…
↗
7
66T8558200
Attachment, pulser
Loading…
↗
8
66T8551500
Lead wire assembly
Loading…
↗
9
9790204108
Screw, with washer
Loading…
↗
10
66T8552000
Coil, charge
Loading…
↗
11
66T4161100
Retainer, magneto base
Loading…
↗
12
9E47104305
Housing, connector (f-4-b)
Loading…
↗
13
66T8132800
Clamp
Loading…
↗
14
66T8553300
Coil, lighting
Loading…
↗
15
9790206125
Screw, pan head (76t)
Loading…
↗
16
9780204006
Screw, pan head(3xp)
Loading…
↗
17
9321075M51
O-ring (6f5)
Loading…
↗
18
9709506040
Bolt (682)
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
9028005015
Key, woodruff
Loading…
↗
21
9017020137
Nut, hexagon(663)
Loading…
↗
22
9020121M18
Washer, plate (663)
Loading…
↗
23
9046515M74
Clamp
Loading…
↗
24
9709506016
Bolt, hexagon deep recess
Loading…
↗
26
9048010M71
Grommet
Loading…
↗
27
9046412M00
Clamp
Loading…
↗
