Yamaha Outboard Parts - GENERATOR - 4CMH (2020) | Flood Marine

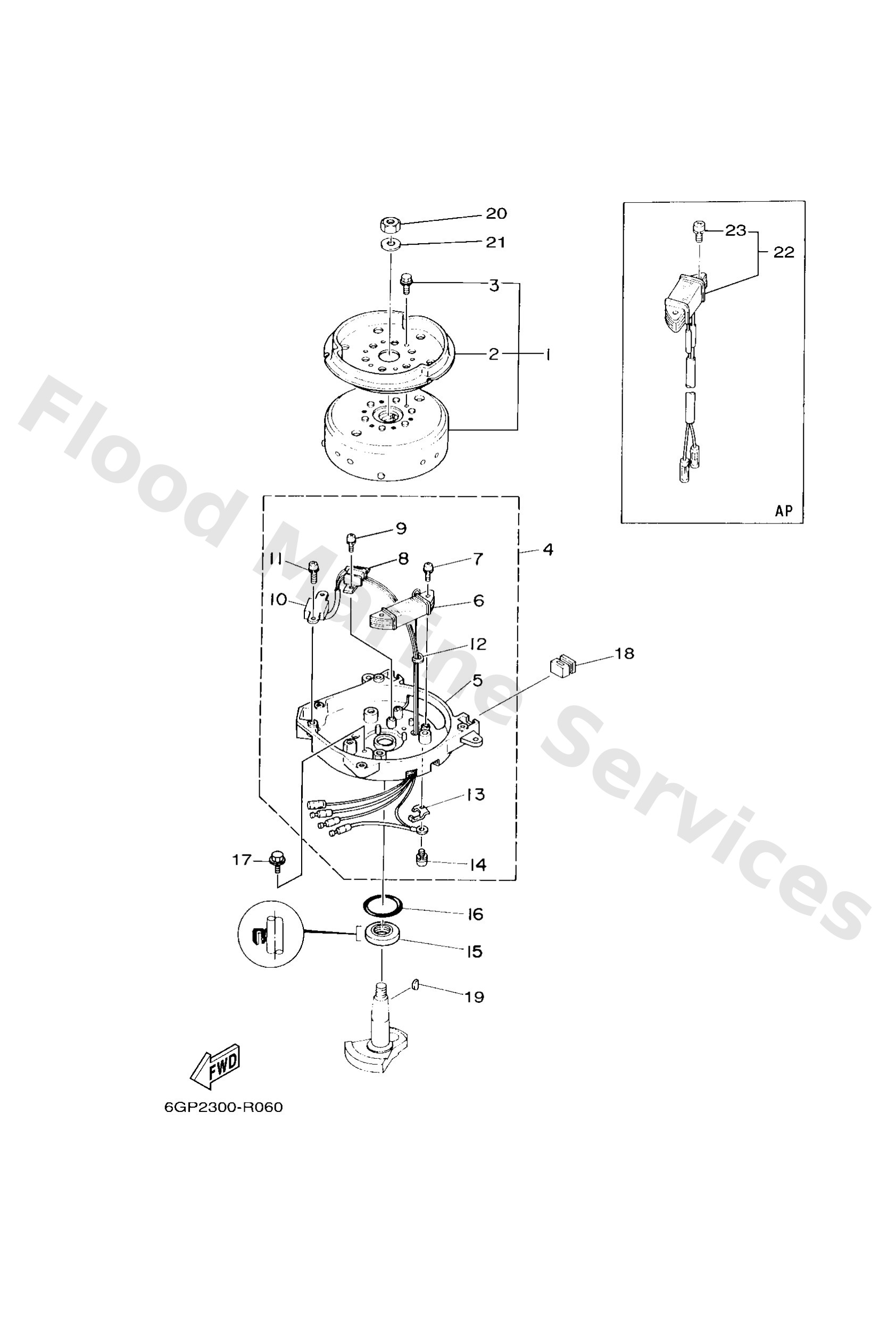

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6E08555072
Rotor assembly
Loading…

↗
2
6E01572300
Pulley, Starter
Loading…

↗
3
9010506M14
Bolt (6e0)
Loading…

↗
4
6E08556071
Base assembly
Loading…

↗
5
6E01535901
Housing, oil seal
Loading…

↗
6
6E08552070
Charge coil ass'y
Loading…

↗
7
9015905038
-
Loading…

↗
8
6E08559570
Coil pulser assembly 1
Loading…

↗
9
9015904036
Screw, pan head(6g8)
Loading…

↗
10
6E08559270
Pulser coil assembly 2
Loading…

↗
11
9015905037
Screw,w/washer
Loading…

↗
12
6E08133670
Grommet
Loading…

↗
13
6E08132870
Clamp
Loading…

↗
14
9015904035
Screw panhead (695)
Loading…

↗
15
9310220M25
Oil seal (6e0)
Loading…

↗
16
9321042159
O-ring (647)
Loading…

↗
17
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
18
6E02418300
Damper, locating 3
Loading…

↗
19
9028004M06
Key, woodruff(6a1)
Loading…

↗
20
9017010113
Nut, crank shaft (650)
Loading…

↗
21
9020110126
Washer, plate (26h)
Loading…

↗
22
6E08130380 AP 60W
Lighting coil assembly
Loading…

↗
22
6E08130340 AP 40W
Lighting coil assembly
Loading…

↗
23
9015905040 FOR 6E0-81303-80
Screw, pan head(4my)
Loading…

↗
23
9015905039 FOR 6E0-81303-40
Screw panhead (695)
Loading…

↗
