50HMHO (2022)
GENERATOR

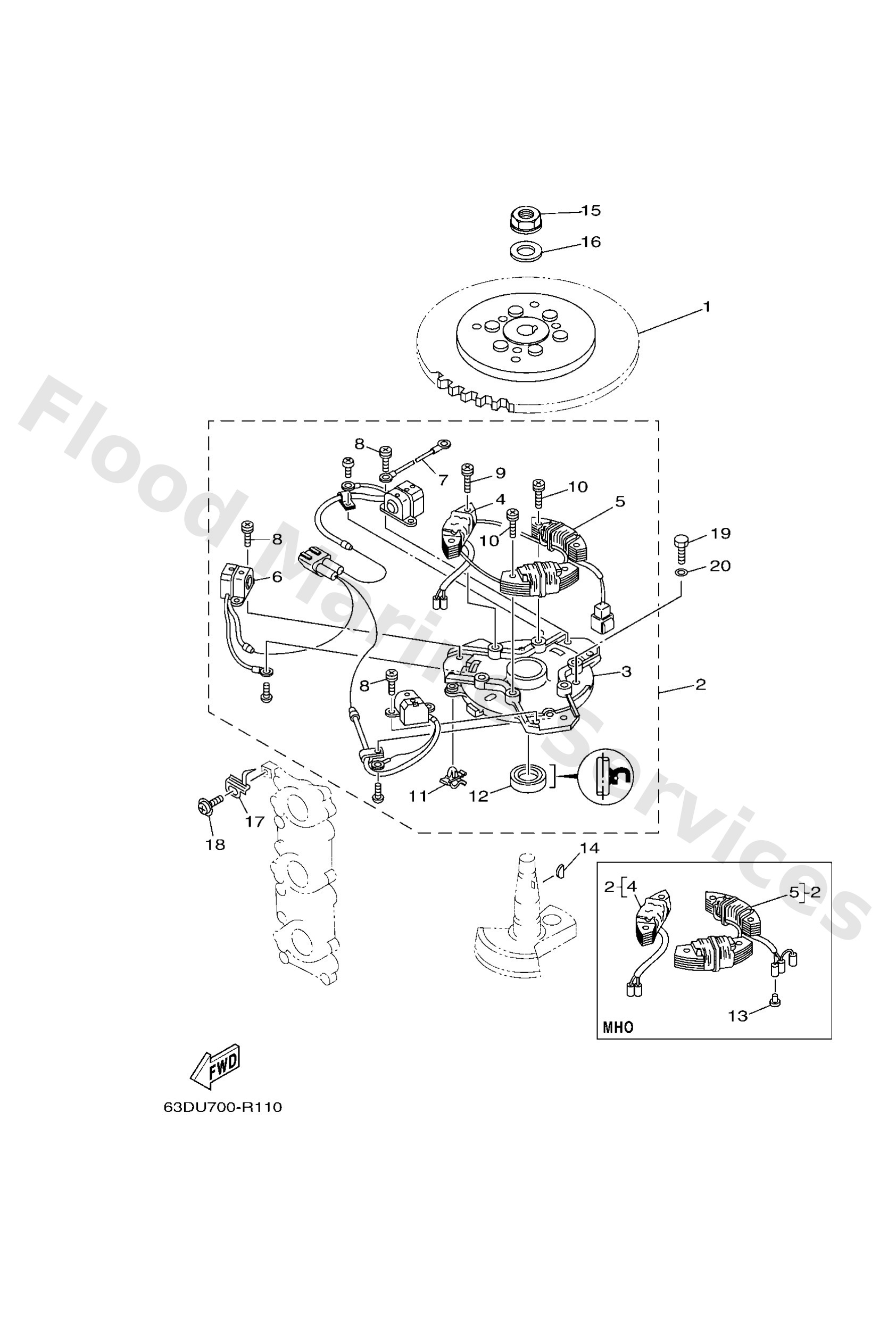

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
63D8555011
Rotor assembly
Loading…
↗
1
63D8555001
Rotor assembly
Loading…
↗
2
63D8556000
Base assembly
Loading…
↗
2
63D8556010
Base assembly
Loading…
↗
3
6H4153590494
Housing, oil seal
Loading…
↗
4
63D8552001
Coil, charge
Loading…
↗
5
63D8553300
Coil, lighting
Loading…
↗
5
63D8553310
Coil, lighting
Loading…
↗
6
63D8558000
Coil, pulser
Loading…
↗
7
6H48335400
Wire, earth lead 1
Loading…
↗
8
63D8134500
Screw, pan
Loading…
↗
9
63D8134510
Screw, pan head (76t)
Loading…
↗
10
63D8134520
Screw, pan
Loading…
↗
11
9046403M15
Clamp(6j8)
Loading…
↗
12
9310223096
Oil seal (23x38x7-648)
Loading…
↗
13
7038211901
40V
Cover, lead wire
Loading…
↗
14
6H41154500
Key, woodruff
Loading…
↗
15
9017916M05
Nut (689)
Loading…
↗
16
9020116M44
Washer (689)
Loading…
↗
17
6H48133200
Plate, timing
Loading…
↗
18
9798505210
Screw, With Washer
Loading…
↗
19
9701306018
Bolt, hexagon
Loading…
↗
20
9290306600
Washer, plain (646)
Loading…
↗
