5CMH (2002)
GENERATOR

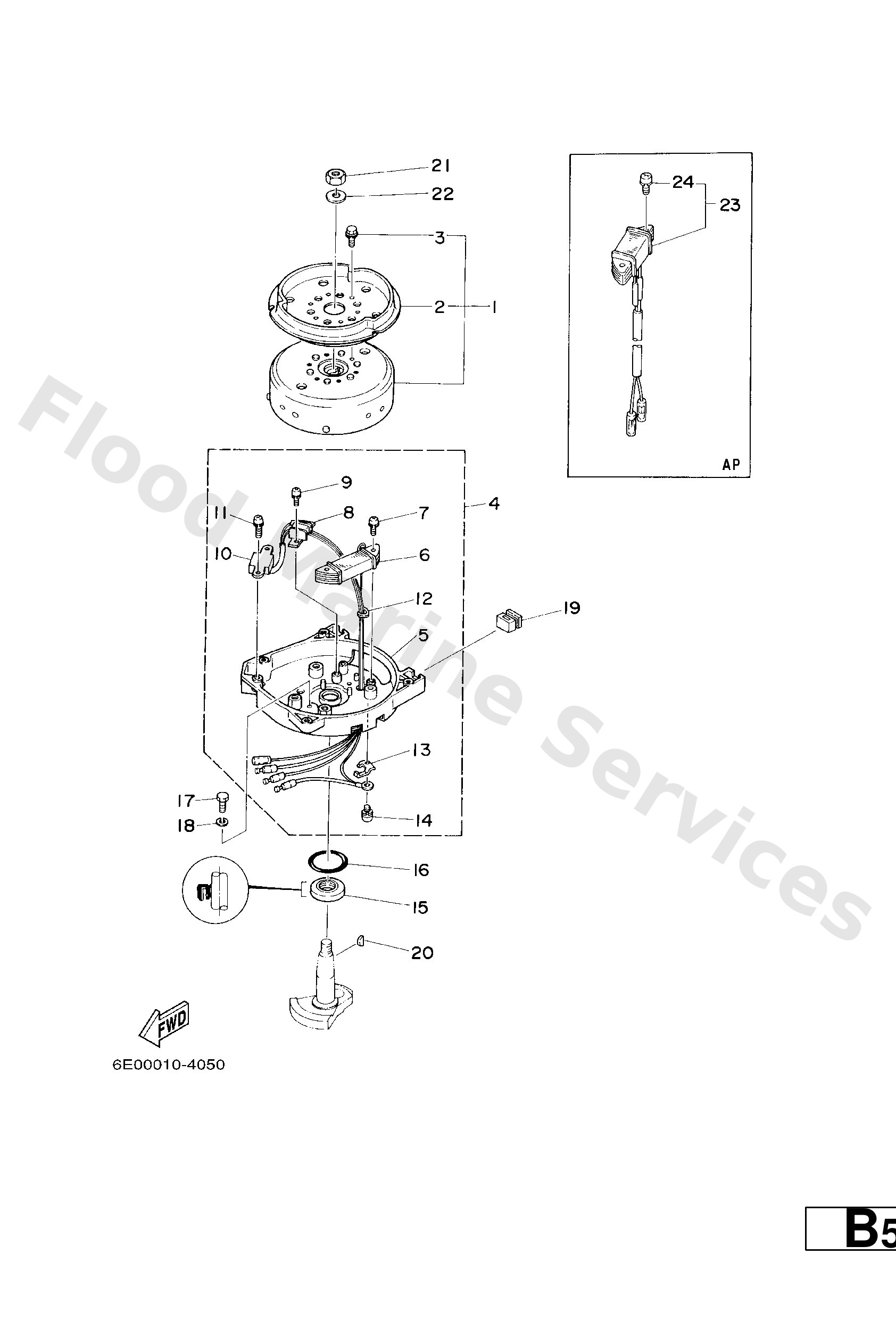

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
6E08555071
Rotor assembly
Loading…
↗
2
6E0--15723--00--94
Pulley, Starter
Loading…
↗
3
90105--06M14
Bolt (6e0)
Loading…
↗
4
6E08556070
Base assembly
Loading…
↗
5
6E0153590094
Housing, oil seal
Loading…
↗
6
6E0--85520--70
Charge coil ass'y
Loading…
↗
7
90159--05038
Screw, With Washer
Loading…
↗
8
6E0--85595--70
Coil pulser assembly 1
Loading…
↗
9
90159--04036
Screw, pan head(6g8)
Loading…
↗
10
6E0--85592--70
Pulser coil assembly 2
Loading…
↗
11
90159--05037
Screw,w/washer
Loading…
↗
12
6E0--81336--70
Grommet
Loading…
↗
13
6E0--81328--70
Clamp
Loading…
↗
14
90159--04035
Screw panhead (695)
Loading…
↗
15
93102--20M25
Oil seal (6e0)
Loading…
↗
16
93210--42159
O-ring (647)
Loading…
↗
17
97095--06016
Bolt, hexagon deep recess
Loading…
↗
18
92995--06100
Washer(6a1)
Loading…
↗
19
6E0--24183--00
Damper, locating 3
Loading…
↗
20
90280--04M06
Key, woodruff(6a1)
Loading…
↗
21
90170--10113
Nut, crank shaft (650)
Loading…
↗
22
90201--10126
Washer, plate (26h)
Loading…
↗
23
6E0--81303--40
AP 40W
Lighting coil assembly
Loading…
↗
23
6E0--81303--80
AP 60W
Lighting coil assembly
Loading…
↗
24
90159--05040
Screw, pan head(4my)
Loading…
↗
