Yamaha Outboard Parts - GENERATOR - 5CMH (2003) | Flood Marine

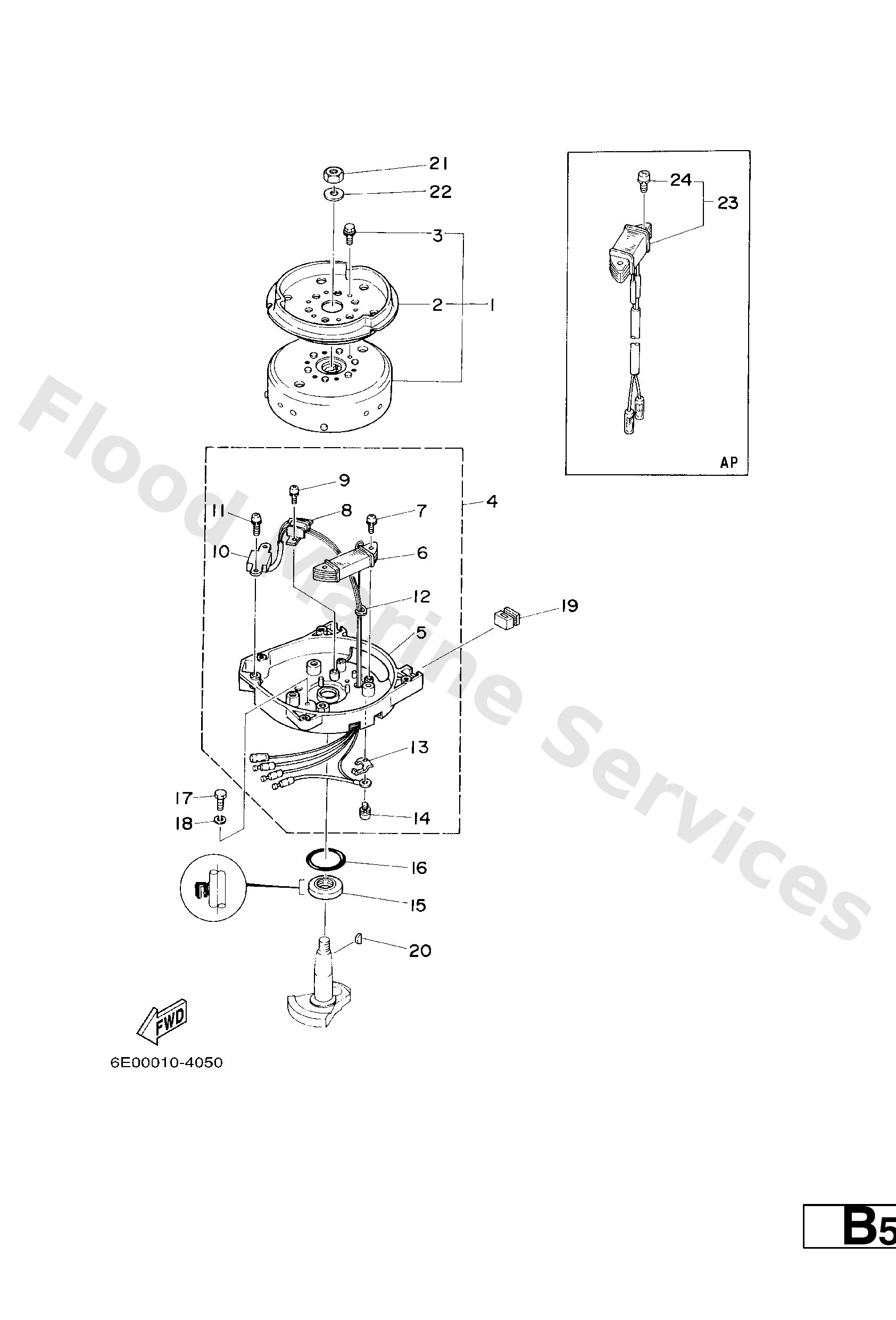

Diagram: GENERATOR

Diagram

Parts List

Reference
Description
Price


1
6E0−85550−71
Rotor assembly
Loading…

↗
2
6E0−15723−00−94
Pulley, Starter
Loading…

↗
3
90105−06M14
Bolt (6e0)
Loading…

↗
4
6E0−85560−70
Base assembly
Loading…

↗
5
6E0−15359−00−94
Housing, oil seal
Loading…

↗
6
6E0−85520−70
Charge coil ass'y
Loading…

↗
7
90159−05038
Screw, With Washer
Loading…

↗
8
6E0−85595−70
Coil pulser assembly 1
Loading…

↗
9
90159−04036
Screw, pan head(6g8)
Loading…

↗
10
6E0−85592−70
Pulser coil assembly 2
Loading…

↗
11
90159−05037
Screw,w/washer
Loading…

↗
12
6E0−81336−70
Grommet
Loading…

↗
13
6E0−81328−70
Clamp
Loading…

↗
14
90159−04035
Screw panhead (695)
Loading…

↗
15
93102−20M25
Oil seal (6e0)
Loading…

↗
16
93210−42159
O-ring (647)
Loading…

↗
17
97095−06016
Bolt, hexagon deep recess
Loading…

↗
18
92995−06100
Washer(6a1)
Loading…

↗
19
6E0−24183−00
Damper, locating 3
Loading…

↗
20
90280−04M06
Key, woodruff(6a1)
Loading…

↗
21
90170−10113
Nut, crank shaft (650)
Loading…

↗
22
90201−10126
Washer, plate (26h)
Loading…

↗
23
6E0−81303−40 AP 40W
Lighting coil assembly
Loading…

↗
23
6E0−81303−80 AP 60W
Lighting coil assembly
Loading…

↗
24
90159−05040
Screw, pan head(4my)
Loading…

↗
